    S3G-E3/57T Rectifier Diode Surface Mount Ultrafast Plastic Rectifier


    ES3F & ES3G

    Surface Mount Ultrafast Plastic Rectifier

    FEATURES

    • Glass passivated chip junction

    • Ideal for automated placement

    • Ultrafast reverse recovery time

    • Low switching losses, high efficiency

    • High forward surge capability

    • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

    • Solder dip 260 °C, 40 s

    • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC


    TYPICAL APPLICATIONS

    For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication.


    MECHANICAL DATA

    Case: DO-214AB (SMC)

    Epoxy meets UL 94V-0 flammability rating

    Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102

    E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test

    Polarity: Color band denotes cathode end


    PRIMARY CHARACTERISTICS

    IF(AV)3.0 A
    VRRM300 V, 400 V
    IFSM100 A
    trr35 ns
    VF1.1 V
    TJ max150 °C

    MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)

    PARAMETERSYMBOLES3FES3GUNIT
    Device marking codeEFEG
    Maximum repetitive peak reverse voltageVRRM300400V
    Working peak reverse voltageVRWM225300V
    Maximum RMS voltageVRMS210280V
    Maximum average forward rectified current at TL = 110 °CIF(AV)3.0A
    Peak forward surge current 8.3 ms single half sine-wave superimposed on rated loadIFSM100A
    Operating junction and storage temperature rangeTJ, TSTG- 55 to + 150°C

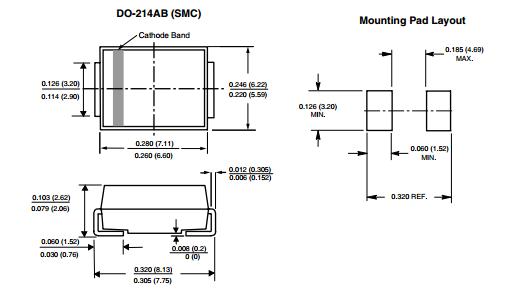

    PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
