    TA8409F Integrated Circuit Chip Silicon Monolithic Bridge Driver


    TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic

    TA8409S, TA8409F


    Bridge Driver


    TA8409S and TA8409F are bridge driver with output voltage control.


    Features

    • Modes available (CW/CCW/STOP/BRAKE)

    • Output current up to 0.4 A (AVE) and 1.0 A (PEAK)

    • Wide range of operating voltage

    VCC (opr.) = 4.5 to 20 V

    VS (opr.) = 0 to 20 V

    *Please consider the internal loss (Vsat) to operate the IC though minimum VS is defined zero.

    Vref (opr.) = 0 to 20 V (Vref ≤ VS)

    • Built-in thermal shutdown

    • Standby mode available (STOP MODE)

    • Hysteresis for all inputs.

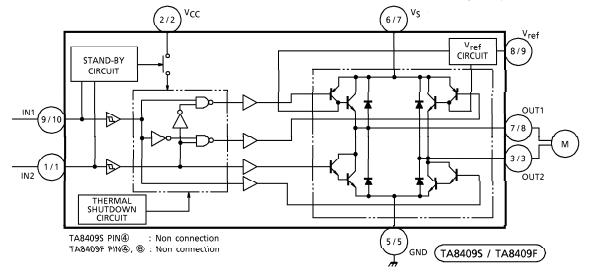

    Block Diagram


    Absolute Maximum Ratings (Ta = 25°C)

    CharacteristicsSymbolRatingUnit
    Supply voltageVCC25V
    Motor drive voltageVS25V
    Reference voltageVref25V
    Output currentPEAKIO (PEAK)1.0A
    AVE.IO (AVE.)0.4
    Power dissipationTA8409FPD0.735 (Note)W
    TA8409S0.95
    Operating temperatureTopr−30 to 75°C
    Storage temperatureTstg−55 to 150°C

    Note: This rating is obtained by mounting on 50 × 50 × 1.6 mm PCB that occupied above 30% of copper area.
