LNK603-606/613-616 LinkSwitch-II Family

Energy-Efficient, Accurate CV/CC Switcher for Adapters and Chargers

Product Highlights

Dramatically Simplifies CV/CC Converters

• Eliminates optocoupler and all secondary CV/CC control circuitry

• Eliminates all control loop compensation circuitry

Advanced Performance Features

• Compensates for transformer inductance tolerances

• Compensates for input line voltage variations

• Compensates for cable voltage drop (LNK61X series)

• Compensates for external component temperature variations

• Very tight IC parameter tolerances using proprietary trimming technology

• Frequency jittering greatly reduces EMI filter cost

• Even tighter output tolerances achievable with external resistor selection/trimming

• Programmable switching frequency up to 85 kHz to reduce transformer size

Advanced Protection/Safety Features

• Auto-restart protection reduces power delivered by >95% for output short circuit and control loop faults (open and shorted components)

• Hysteretic thermal shutdown – automatic recovery reduces power supply returns from the field

• Meets high voltage creepage requirements between DRAIN and all other pins both on the PCB and at the package

EcoSmart® – Energy Efficient

• Easily meets all global energy efficiency regulations

• No-load consumption below 30 mW at 230 VAC with optional external bias winding

• ON/OFF control provides constant efficiency down to very light loads – ideal for CEC and ENERGY STAR 2.0 regulations

• No current sense resistors – maximizes efficiency

Green Package

• Halogen free and RoHS compliant package

Applications

• Chargers for cell/cordless phones, PDAs, MP3/portable audio devices, adapters, LED drivers, etc.

Description

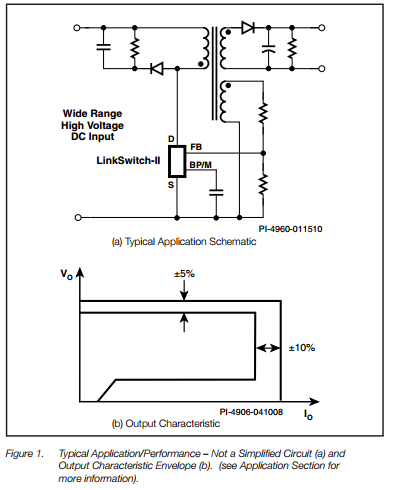

The LinkSwitch-II dramatically simplifies low power CV/CC charger designs by eliminating an optocoupler and secondary control circuitry. The device introduces a revolutionary control technique to provide very tight output voltage and current regulation, compensating for transformer and internal parameter tolerances along with input voltage variations.

The device incorporates a 700 V power MOSFET, a novel ON/OFF control state machine, a high voltage switched current source for self biasing, frequency jittering, cycle-by-cycle current limit and hysteretic thermal shutdown circuitry onto a monolithic IC.

Absolute Maximum Ratings^(1,4)

DRAIN Voltage .........................................................-0.3 V to 700 V

DRAIN Peak Current: LNK603/613...................320 (480) mA⁽⁴⁾

LNK604/614 .................. 400 (600) mA⁽⁴⁾

LNK605/615 .................. 504 (750) mA⁽⁴⁾

LNK606/616.................. 654 (980) mA⁽⁴⁾

Peak Negative Pulsed Drain Current ............................ -100 mA⁽²⁾

FEEDBACK Pin Voltage ............................................... -0.3 V to 9 V

FEEDBACK Pin Current ...................................................... 100 mA

BYPASS Pin Voltage ..................................... ............. -0.3 V to 9 V

Storage Temperature ........................................... -65 °C to 150 °C

Operating Junction Temperature ......................... -40 °C to 150 °C

Lead Temperature⁽³⁾ .......................................................... 260 °C

Notes:

1. All voltages referenced to SOURCE, T_A = 25 °C.

2. Duration not to exceed 2 msec.

3. 1/16 in. from case for 5 seconds.

4. The higher peak DRAIN current is allowed while the DRAIN voltage is simultaneously less than 400 V.

5. Maximum ratings specified may be applied, one at a time without causing permanent damage to the product. Exposure to Absolute Maximum ratings for extended periods of time may affect product reliability.
