    TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications


    TT2170LS

    Color TV Horizontal Deflection Output Applications


    Features

    • High speed.

    • High breakdown voltage(VCBO=1500V).

    • High reliability(Adoption of HVP process).

    • Adoption of MBIT process.

    • On-chip damper diode.


    Absolute Maximum Ratings at Ta=25°C

    ParameterSymbolConditionsRatingsUnit
    Collector-to-Base VoltageVCBO1500V
    Collector-to-Emitter VoltageVCEO800V
    Emitter-to-Base VoltageVEBO5V
    Collector CurrentIC5A
    Collector Current (Pulse)ICP12A
    Collector DissipationPC2.0W
    Tc=25°C25W
    Junction TemperatureTj150°C
    Storage TemperatureTstg--55 to +150°C

    Package Dimensions

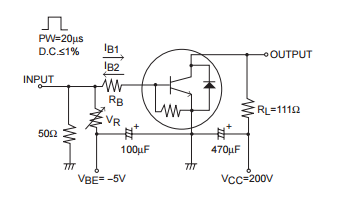

    Switching Time Test Circuit
