H11L1M 6-PIN DIP OPTOISOLATORS LOGIC OUTPUT integrated components

FEATURES

• High data rate, 1 MHz typical (NRZ)

• Free from latch up and oscilliation throughout voltage and temperature ranges.

• Microprocessor compatible drive

• Logic compatible output sinks 16 mA at 0.4 V maximum

• Guaranteed on/off threshold hysteresis

• Wide supply voltage capability, compatible with all popular logic systems

• Underwriters Laboratory (UL) recognized—file #E90700, Volume 2

• VDE recognized – File#102497 – Add option V (e.g., H11LIVM)

APPLICATIONS

• Logic to logic isolator

• Programmable current level sensor

• Line receiver—eliminate noise and transient problems

• A.C. to TTL conversion—square wave shaping

• Digital programming of power supplies

DESCRIPTION The H11LXM series has a high speed integrated circuit detector optically coupled to a gallium-arsenide infrared emitting diode. The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping. The detector circuit is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility.

• Interfaces computers with peripherals

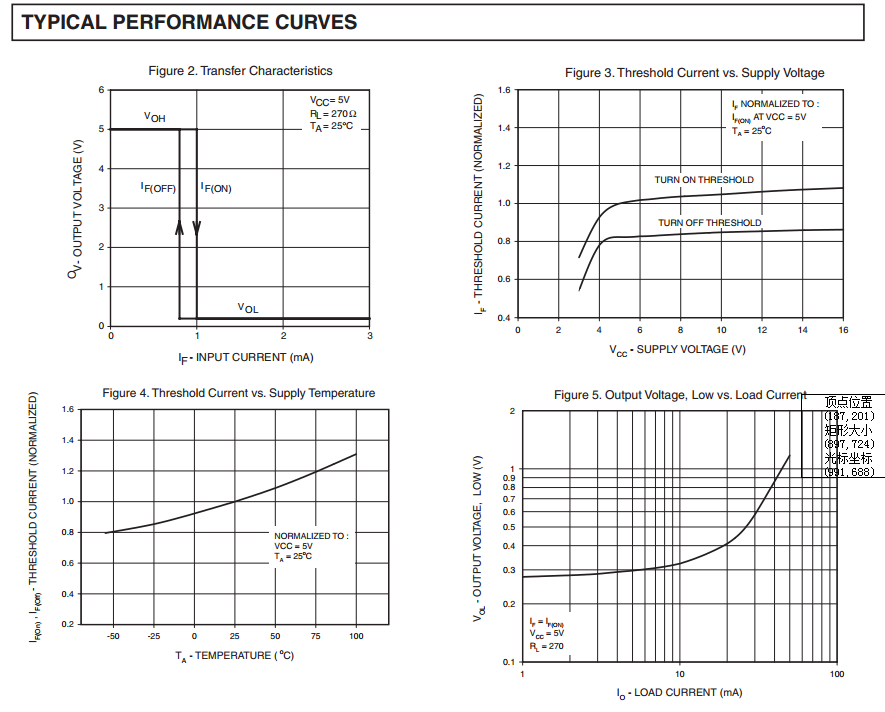

STOCK LIST

           King--- Originator of ANTERWELL, engaged in the IC electronics industry in 1998 and establish ANTERWELL in 2004. The company is located in Shenzhen Huaqiang North, the largest electronic center in Asia. Our main business is the technical development and electronic products import and export business. Currently, we have branches in Hong Kong and Malaysia.

           Up to now. ANTERWELL have more than 1,000,000 types of electronic components in stock. ANTERWELL has become one of the top choices for purchasing IC chips both domestically and internationally. King is a senior IC chip expert, sales engineer, and mentor, leading an elite team with customer first, quality first, honesty, trustworthiness, and mutual benefit. We look forward to cooperate with you to create a better future!

            ANTERWELL’s main products include semiconductors, resistors, capacitors, diodes, inductors, connectors, transistors, sensors, etc. Involving the major well-known brands such like: TI, XILINX, FAIRCHILD, STM, MICRON, MICROCHIP, TDK, SAMSUNG, ON, NXP,IR,ADI, ATMEL,VISHAY,LINEAR etc.

            ANTERWELL adheres to the development concept and purpose of "direct stock offer, excellent quality, favorable price, and sincere service", which is deeply recognized by domestic and foreign customers. Based on the long-term development goal, ANTERWELL provides customers with standardized, professional, and diversified high-quality services through a strong market service network. ANTEWRELL has multiple skilled and capable executives with a professional QC team and excellent sales team to win the high support and trust of the vast customer base! We provide the best quality, price and service.

           ANTERWELL will be your best Partner.
