    MBRB10100CT diode rectifier circuit Dual High Voltage Schottky Rectifiers

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : MBRB10100CT
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    MBRB10100CT diode rectifier circuit Dual High Voltage Schottky Rectifiers


    MBR10H100CT, MBRF10H100CT & MBRB10H100CT Series

    Dual High-Voltage Schottky Rectifiers


    Rev. Voltage 90 to 100V

    Forward Current 10A


    Features

    • Plastic package has Underwriters Laboratory Flammability Classification 94V-0

    • Dual rectifier construction, positive center tap

    • Metal silicon junction, majority carrier conduction

    • Low power loss, high efficiency

    • Guardring for overvoltage protection

    • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications


    Mechanical Data

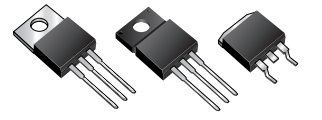

    Case: JEDEC TO-220AB, ITO-220AB & TO-263AB molded plastic body

    Terminals: Plated leads, solderable per MIL-STD-750, Method 2026

    High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case

    Polarity: As marked

    Mounting Position: Any

    Mounting Torque: 10 in-lbs maximum

    Weight: 0.08oz., 2.24g



    Maximum Ratings (TC = 25°C unless otherwise noted)

    ParameterSymbolMBR10H90CTMBR10H100CTUnit
    Maximum repetitive peak reverse voltageVRRM90100V
    Working peak reverse voltageVRWM90100V
    Maximum DC blocking voltageVDC90100V

    Maximum average forward rectified current Total device

    at TC = 105°C Per leg

    IF(AV)

    10

    5

    A

    Peak forward surge current

    8.3ms single half sine-wave superimposed

    on rated load (JEDEC Method) per leg

    IFSM150A
    Peak repetitive reverse current per leg at tp = 2µs, 1KHZIRRM0.5A
    Voltage rate of change (rated VR)dv/dt10,000V/µs
    Operating junction and storage temperature rangeTJ, TSTG–65 to +175°C

    RMS Isolation voltage (MBRF type only) from terminals

    to heatsink with t = 1 second, RH ≤ 30%

    VISOL

    4500 (1)

    3500 (2)

    1500 (3)

    V

    Notes:

    (1) Clip mounting (on case), where lead does not overlap heatsink with 0.110” offset

    (2) Clip mounting (on case), where leads do overlap heatsink

    (3) Screw mounting with 4-40 screw, where washer diameter is ≤ 4.9 mm (0.19”)
