OPA363 OPA2363 OPA364 OPA2364 OPA4364

1.8V, 7MHz, 90dB CMRR, SINGLE-SUPPLY, RAIL-TO-RAIL I/O OPERATIONAL AMPLIFIER

FEATURES

● 1.8V OPERATION

● MicroSIZE PACKAGES

● BANDWIDTH: 7MHz

● CMRR: 90dB (typical)

● SLEW RATE: 5V/µs

● LOW OFFSET: 500µV (max)

● QUIESCENT CURRENT: 750µA/Channel (max)

● SHUTDOWN MODE: < 1µA/Channel

APPLICATIONS

● SIGNAL CONDITIONING

● DATA ACQUISITION

● PROCESS CONTROL

● ACTIVE FILTERS

● TEST EQUIPMENT

DESCRIPTION

The OPA363 and OPA364 families are high-performance CMOS operational amplifiers optimized for very low voltage, single-supply operation. These miniature, low-cost amplifiers are designed to operate on single supplies from 1.8V (±0.9V) to 5.5V (±2.75V). Applications include sensor amplification and signal conditioning in battery-powered systems.

The OPA363 and OPA364 families offer excellent CMRR without the crossover associated with traditional complimentary input stages. This results in excellent performance for driving Analog-to-Digital (A/D) converters without degradation of differential linearity and THD. The input commonmode range includes both the negative and positive supplies. The output voltage swing is within 10mV of the rails.

The OPA363 family includes a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1µA.

The single version is available in the MicroSIZE SOT23-5 (SOT23-6 for shutdown) and SO-8. The dual version is available in MSOP-8, MSOP-10, and SO-8 packages. Quad packages are available in TSSOP-14 and SO-14 packages. All versions are specified for operation from –40°C to +125°C.

ABSOLUTE MAXIMUM RATINGS⁽¹⁾

Supply Voltage ................................................................................. +5.5V

Signal Input Terminals, Voltage⁽²⁾ ........................... –0.5V to (V+) + 0.5V

Current⁽²⁾ .................................................. ±10mA

Enable Input ............................................................... (V–) – 0.5V to 5.5V

Output Short-Circuit(3) .............................................................. Continuous

Operating Temperature .................................................. –40°C to +150°C

Storage Temperature ..................................................... –65°C to +150°C

Junction Temperature .................................................................... +150°C

Lead Temperature (soldering, 10s) ............................................... +300°C

NOTES:

(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.

(2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current limited to 10mA or less.

(3) Short-circuit to ground one amplifier per package.

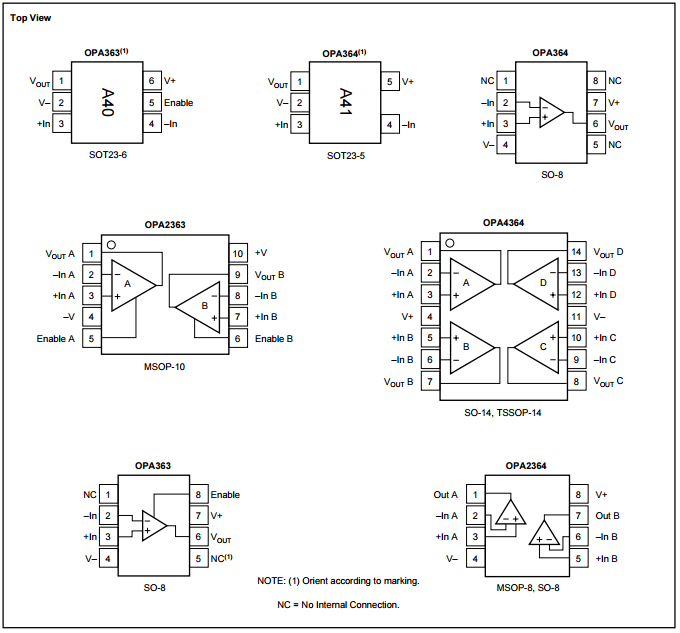

PIN CONFIGURATIONS
