SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A

Anterwell Technology Ltd.
Contact Now
    Buy cheap SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A from wholesalers

    Buy cheap SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A from wholesalers
    • Buy cheap SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A from wholesalers

    SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : SB560-E3-73
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 8200pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A

    SB560-E3-73 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V Forward Current 5.0A


    Feature & Dimensions


    Plastic package has Underwriters Laboratory Flammability Classification 94V-0

    Low power loss,high efficiency

    For use in low voltage high frequency inverters, free wheeling,and polarity protection applications Guarding for over voltage protection

    High temperature soldering guaranteed: 260°C/10 seconds at terminals

    IEC61000-4-2 ESD Air Contact≥±15KV


    Mechanical Data


    Case: JEDEC DO-201AD, molded plastic over sky die Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any

    Weight: 0.038oz., 1.03 g Handling precautin:None


    1.Electrical Characteristic Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified.


    Parameter SymbolsymbolSB520- ESB530-ESB540-ESB550-ESB560-ESB580-ESB5100-EUnit
    device marking codeSB520 ESDSB530 ESDSB540 ESDSB550 ESDSB560 ESDSB580 ESDSB5100 ESD
    Maximum repetitive peak reverse voltageVRRM203040506080100V
    Maximum RMS voltageVRMS14212835425670V
    Maximum DC blocking voltageVDC203040506080100V
    Maximum average forward rectified curren 0.375" (9.5mm) lead length (See fig. 1)IF(AV)5.0A
    Peak forward surge current 8.3ms single half sinewave superimposed on rated load (JEDEC Method)IFSM150A
    Operating junction and storage temperature rangeTJ, TSTG–40 to +150°C

    Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified


    Parameter SymbolsymbolSB520-ESB530-ESB540-ESB550- ESB560-ESB580-ESB5100-EUnit
    Maximum instantaneous forward voltage at 5.0AVF0.500.700.84V
    Maximum DC reverse current TA = 25°C at rated DC blocking voltage TA = 125°CIR

    1

    20

    mA

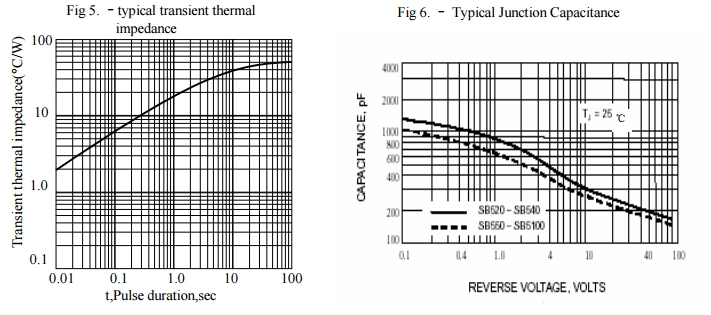

    thermal resistance, junction to ambientRθJA35°C/W
    Typical junction capacitance at 4.0V, 1MHzCJ500380PF
