    ST3232CTR Common Integrated Circuit Chip Up To 400 Kbps RS-232 Drivers And Receivers

    ST3232CTR

    3 to 5.5 V, low power, up to 400 kbps RS-232 drivers and receivers


    Features

    ■ 300 µA supply current
    ■ 300 kbps minimum guaranteed data rate

    ■ 6 V/µs minimum guaranteed slew rate
    ■ Meet EIA/TIA-232 specifications down to 3 V

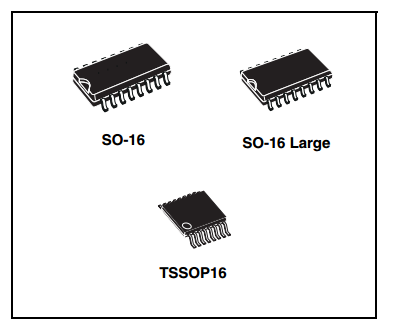

    ■ Available in SO-16, SO-16 large and TSSOP16

    Description
    The ST3232 is a 3 V powered EIA/TIA-232 and V.28/V.24
    communication interface with low power requirements, high
    data-rate capabilities. ST3232 has a proprietary low dropout
    transmitter output stage providing true RS-232 performance
    from 3 to 5.5 V supplies. The device requires only four small
    0.1 mF standard external capacitors for operations from 3 V
    supply. The ST3232 has two receivers and two drivers. The
    device is guaranteed to run at data rates of 250 kbps while
    maintaining RS-232 output levels. Typical applications are Not
    -ebook, Subnotebook and Palmtop Computers, Battery Powered



    Absolute maximum ratings

    SymbolParameterValueUnit
    VCCSupply voltage-0.3 to 6V
    V+Doubled voltage terminal(VCC - 0.3) to 7V
    V-Inverted voltage terminal0.3 to -7V
    V+ +|V-13V
    TINTransmitter input voltage range-0.3 to 6V
    RINReceiver input voltage range± 25V
    TOUTTransmitter output voltage range± 13.2V
    ROUTReceiver output voltage range0.3 to (VCC + 0.3)V
    tSHORTTransmitter output short to gnd timeContinuous

    Note: Absolute maximum ratings are those values beyond which damage to the device may occur.
    Functional operation under these condition is not implied.
    Externally applied V+ and V- can have a maximum magnitude of +7 V, but their absolute
    addition can not exceed 13 V.

    Running on internal charge pump, intrinsic self limitation allows exceeding those values
    without any damage.
    Startup voltage sequence (VCC, then V+, then V-) is critical, therefore it is not recommended
    to use this device using externally applied voltage to V+ and V-.

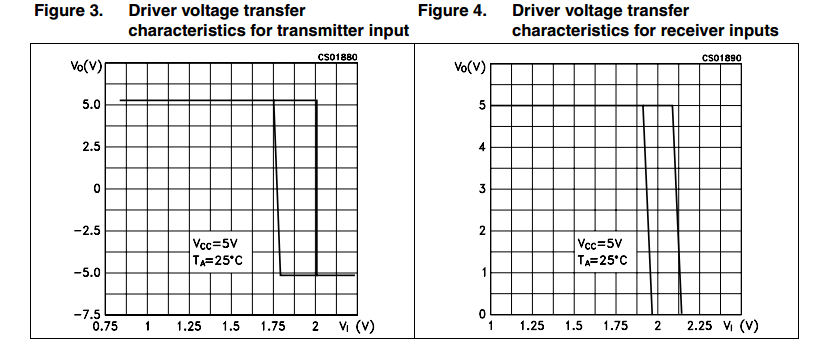

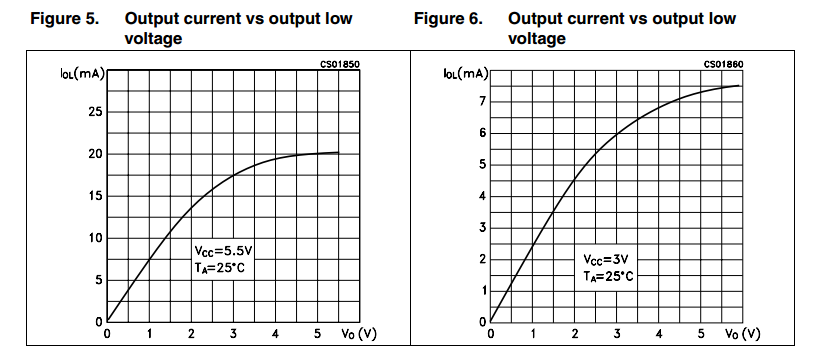

    Typical performance characteristics(unless otherwise specified TJ = 25 °C)
