    MCP131T-300E-TT Micropower Voltage Supervisors Open Drain Low popular integrated circuits

    Ask Lasest Price
    Brand Name : Microchip
    Model Number : MCP131T-300E-TT
    Certification : Original Factory Pack
    Price : negotiation
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 10000PCS
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    MCP131T-300E-TT Micropower Voltage Supervisors Open Drain Low popular integrated circuits

    MCP131T-300E-TT Micropower Voltage Supervisors

    Features

    • Ultra low supply current: 1.75 µA
    (steady-state max.)
    • Precision monitoring options of:
    - 1.90V, 2.32V, 2.63V, 2.93V, 3.08V, 4.38V and 4.63V
    • Resets microcontroller in a power-loss event
    • RST pin (Active-low): - MCP121: Active-low, open-drain
    - MCP131: Active-low, open-drain with internal
    pull-up resistor
    - MCP102 and MCP103: Active-low, push-pull
    • Reset Delay Timer (120 ms delay, typ.)

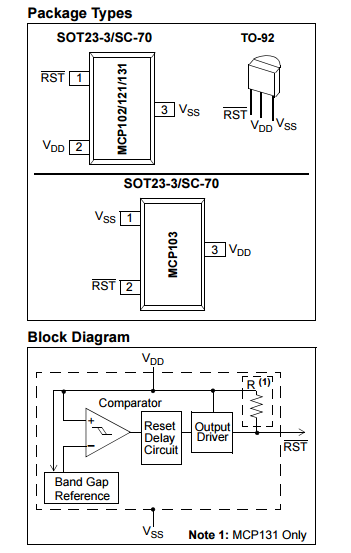

    • Available in SOT23-3, TO-92 and SC-70 packages
    • Temperature Range:
    - Extended: -40°C to +125°C
    (except MCP1XX-195)
    - Industrial: -40°C to +85°C
    (MCP1XX-195 only)
    • Pb-free devices

    Applications

    • Critical Microcontroller and Microprocessor
    Power-monitoring Applications
    • Computers
    • Intelligent Instruments
    • Portable Battery-powered Equipment

    General Description

    The MCP102/103/121/131 are voltage supervisor
    devices designed to keep a microcontroller in reset
    until the system voltage has reached and stabilized
    at the proper level for reliable system operation.


    Absolute Maximum Ratings
    VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
    Input current (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 mA
    Output current (RST) . . . . . . . . . . . . . . . . . . . . . . . . . .10 mA
    Rated Rise Time of VDD . . . . . . . . . . . . . . . . . . . . . . 100V/µs
    All inputs and outputs (except RST) w.r.t. VSS
    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.6V to (VDD + 1.0V)
    RST output w.r.t. VSS . . . . . . . . . . . . . . . . . . . -0.6V to 13.5V
    Storage temperature . . . . . . . . . . . . . . . . . . -65°C to + 150°C
    Ambient temp. with power applied . . . . . . . -40°C to + 125°C
    Maximum Junction temp. with power applied . . . . . . . . 150°C
    ESD protection on all pins. . . . . . . . . . . . . . . . . . . . . . . . . ≥ 2 kV
    TYPICAL PERFORMANCE CURVES
