    High Accuracy Ultralow I Low Dropout Regulator digital Integrated Circuit Chip ADP3338AKCZ-3.3-RL

    Ask Lasest Price
    Brand Name : Analog Devices
    Model Number : ADP3338AKCZ-3.3-RL
    Certification : Original Factory Pack
    Price : negotiation
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 10000PCS
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    High Accuracy Ultralow I Low Dropout Regulator digital Integrated Circuit Chip ADP3338AKCZ-3.3-RL

    ADP3338AKCZ-3.3-RL High Accuracy, Ultralow I Low Dropout Regulator


    FEATURES
    High accuracy over line and load: ±0.8% @ 25°C,
    ±1.4% over temperature
    Ultralow dropout voltage: 190 mV (typ) @ 1 A
    Requires only CO = 1.0 µF for stability
    anyCAP is stable with any type of capacitor (including MLCC)
    Current and thermal limiting
    Low noise
    2.7 V to 8 V supply range
    −40°C to +85°C ambient temperature range
    ​SOT-223 package
    APPLICATIONS
    Notebook, palmtop computers
    SCSI terminators
    Battery-powered systems
    Bar code scanners
    Camcorders, cameras
    Home entertainment systems
    Networking systems
    DSP/ASIC supplies


    GENERAL DESCRIPTION

    The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1 µF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1 µF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable
    ABSOLUTE MAXIMUM RATINGS

    ParameterRating
    Input Supply Voltage−0.3 V to +8.5 V
    Power DissipationInternally limited
    Operating Ambient Temperature Range−40°C to +85°C
    Operating Junction Temperature Range−40°C to +150°C
    θJA62.3°C/W
    θJC26.8°C/W
    Storage Temperature Range−65°C to +150°C
    Lead Temperature (Soldering 10 sec)300°C
    Vapor Phase (60 sec)215°C
    Infrared (15 sec)220°C

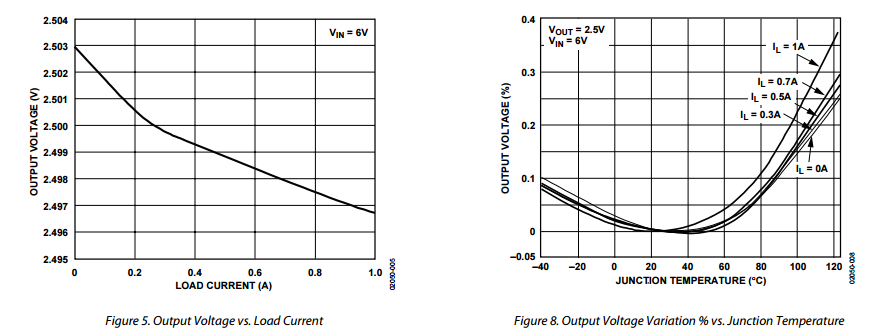

    TYPICAL PERFORMANCE CHARACTERISTICS
    TA = 25°C, unless otherwise noted






    STOCK LIST

    TPIC6A595DW3128TI16+SOP-24
    TMP82C54M-21853TOSHIBA13+SOP-24
    TPS62203DBVR25508TI16+SOP23-5
    TPS76901DBVR16990TI16+SOP23-5
    STC11F02E6936STC16+SOP-20
    STC12C5202AD-35I43400STC16+SOP-20
    STC15F204EA-35I-SO33896STC16+SOP-20
    SN74ABT573ADWR10632TI16+SOP-20
    SN74AHCT245DWR10004TI15+SOP-20
    SN74ALS541N11132TI16+SOP-20
    SN74CBT3245ADWR18144TI16+SOP-20
    SN74HC244DWR25500TI10+SOP-20
    SN74HC245DWR12416TI14+SOP-20
    SN74HC374DWR10238TI14+SOP-20
    SN74HC541DWR17384TI04+SOP-20
    SN74HC573ADWR9626TI16+SOP-20
    SN74HC574DWR7826TI15+SOP-20
    SN74HC574N9824TI16+SOP-20
    SN74HC688DWR10664TI04+SOP-20
    SN74HCT244DWR10886TI13+SOP-20
    SN74HCT244N8014TI16+SOP-20
    SN74HCT373DWR10000TI13+SOP-20
    SN74HCT374DWR13676TI13+SOP-20
    SN74LS244DWR16044TI16+SOP-20
    SN74LS244N10704TI16+SOP-20
    SN74LS245DWR16022TI16+SOP-20
    SN74LS541DWR18740TI15+SOP-20
    SN74LVC244ADWR18374TI08+SOP-20
    SN74LVTH273DWR8780TI03+SOP-20
    SN75185DBR11120TI15+SOP-20
    SN75185DWR10958TI16+SOP-20
    SN75C1154N2405TI04+SOP-20
    TCM129C13ADW6368TI10+SOP-20
    TLC2543C4210TI13+SOP-20
    TLC2543CDWR1631TI14+SOP-20
    TLC2543IDWR1253TI13+SOP-20
    TLC7528CDWR12984TI15+SOP-20
    TPIC0107B1934TI15+SOP-20
    TPIC6273DWR2579TI16+SOP-20
    TPIC6B273DWR5916TI14+SOP-20
    TPIC6B595DWR7220TI15+SOP-20
    TPIC6B596DWR48228TI16+SOP-20
    TPIC8101DWR2093TI08+SOP-20
    UCC2895DWTR1985TI10+SOP-20
    UCC3895DWTRG46490TI13+SOP-20
    TA8428F2906TOSHIBA16+SOP-20
