Integrated Circuit Chip MIC841LBC5 Comparator with 1.25% Reference and Adjustable Hysteresis

Anterwell Technology Ltd.
Contact Now
    Buy cheap Integrated Circuit Chip MIC841LBC5 Comparator with 1.25% Reference and Adjustable Hysteresis from wholesalers

    Buy cheap Integrated Circuit Chip MIC841LBC5 Comparator with 1.25% Reference and Adjustable Hysteresis from wholesalers
    • Buy cheap Integrated Circuit Chip MIC841LBC5 Comparator with 1.25% Reference and Adjustable Hysteresis from wholesalers

    Integrated Circuit Chip MIC841LBC5 Comparator with 1.25% Reference and Adjustable Hysteresis

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : MIC841LBC5
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    Integrated Circuit Chip MIC841LBC5 Comparator with 1.25% Reference and Adjustable Hysteresis

    MIC841LBC5
    Comparator with 1.25% Reference and Adjustable Hysteresis

    Features ​
    • 1.5V to 5.5V operating range
    • 1.5μA typical supply current
    • ±1.25% voltage threshold accuracy
    • 10nA max input leakage current over temperature
    • 10µs propagation delay

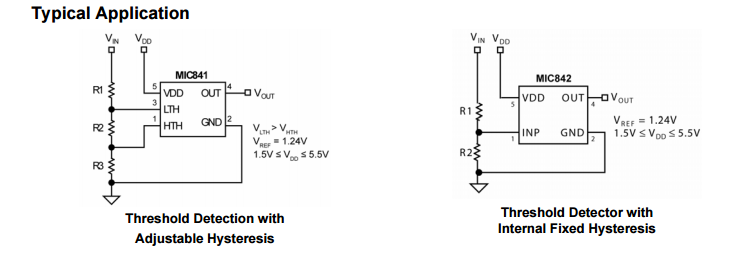

    • Externally adjustable hysteresis (MIC841)
    • Internal 20mV hysteresis (MIC842)
    • Output options
    - Push-pull, active high
    - Push-pull, active low

    - Open drain, active low

    • Open drain output can be pulled to 6V regardless of VDD

    • Immune to brief input transients
    • Teeny™ 5-pin SC-70 package

    Applications

    • Smart phones
    • PDAs

    • Precision battery monitoring
    • Battery chargers

    Absolute Maximum Ratings

    Supply Voltage (VDD)....................................... –0.3V to +7V
    Input Voltage (VINP, VLTH, VLTL) .......................................+7V
    Output Current (IOUT) .................................................±20mA

    Storage Temperature (TS)........................ –65°C to +150°C
    ESD Rating, Note 3 .......................................................1kV

    Operating Ratings

    Supply Voltage (VDD)................................... +1.5V to +5.5V
    Input Voltage (VINP VLTH, VLTL)........................... –0.3V to 6V
    VOUT (‘H’ and ‘L’ versions)............................................... VDD
    VOUT (‘N’ version)............................................................. 6V
    Ambient Temperature Range (TA) ............. –40°C to +85°C
    Junction Temperature (TJ) ........................................ 150°C
    Package Thermal Resistance (θJA).................... 256.5°C/W

    Stock Offer (Hot Sell)

    Part No.QuantityBrandD/CPackage
    M5L8251P-52064MIT13+DIP
    M677122274MIT16+ZIP
    M687291039MIT16+SMD
    M68AF127BM55MC6U8418ST04+SOP-32
    M74HC14RM13TR6000ST13+SOP-14
    M74HC32RM13TR15000ST10+SOP-14
    M74HC373RM13TR63000ST12+SOP-20
    M74HC595RM13TR29000ST16+SOP
    M74HCT14MX5000ST08+SOP-14
    M93C46-WBN6P10935ST10+DIP-8
    M93S46-WMN6T22208ST05+SOP-8
    M95256-WMN6TP5195ST15+SOP-8
    MAALSS0038TR-30009349M/A-COM09+SC70-6
    MAR9109PD8389ST16+SSOP
    MAX1202BCAP+1579MAXIM13+SSOP-20
    MAX13223EEUP+T2681MAXIM15+TSSOP-20
    MAX13256ATB+T3367MAXIM15+TDFN10
    MAX14502AETL+1147MAXIM14+QFN
    MAX14550EETB+T8448MAXIM15+QFN
    MAX14803CCM+2227MAXIM14+QFP48
    MAX1483CPA+95000MAXIM13+DIP
    MAX1487ESA29000MAX15+SOP-8
    MAX1555EZK+T12570MAXIM15+SOT-23
    MAX1693EUB8219MAXIM16+MSOP-10
    MAX17020ETJ+T9420MAXIM10+QFN
    MAX1744EUB6752MAXIM16+MSOP-10
    MAX1744EUB/V+5026MAXIM16+MSOP-10
    MAX1776EUA+4758MAXIM14+MSOP
    MAX1837EUT33+T8360MAXIM16+SOT23-6
    MAX1837EUT33-T9032MAXIM13+SOT-23
