MAX4518CSD Precision, 4-Channel/Dual 2-Channel, Low-Voltage, CMOS Analog Multiplexers

General Description

The MAX4518/MAX4519 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 4Ω between channels and remains flat over the specified analog signal range (10Ω max). They also offer low leakage over temperature (NO-off leakage current less than 2nA at +85°C) and fast switching speeds (transition time less than 250ns). The MAX4518 is a 4-channel device, and the MAX4519 is a dual 2-channel device. The MAX4518/MAX4519 are fabricated with Maxim’s low-voltage silicon-gate process. Design improvements yield extremely low charge injection (less than 5pC) and guarantee electrostatic discharge protection greater than 2000V. These muxes operate with a single +2.7V to +15V supply or with bipolar ±2.7V to ±8V supplies, while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.

Features

Guaranteed On-Resistance Match Between Channels (<4Ω )

Low On-Resistance (<100Ω )

Guaranteed Flat On-Resistance over Signal Range (<10Ω)

Guaranteed Low Charge Injection (<5pC)

NO-Off Leakage Current <2nA at +85°C

COM-Off Leakage Current <5nA at +85°C

Electrostatic Discharge Protection >2000V

Single-Supply Operation (+2.7V to +15V) Bipolar-Supply Operation (±2.7V to ±8V)

Low Power Consumption (<300µW)

Rail-to-Rail Signal Handling

TTL/CMOS-Logic Compatible

Applications

Sample-and-Hold Circuits

Automatic Test Equipment

Heads-Up Displays

Guidance and Control Systems

Military Radios

Communications Systems

Battery-Operated Systems

PBX, PABX

Audio Signal Routing

Low-Voltage Data-Acquisition Systems

Features

Guaranteed On-Resistance Match Between Channels (<4Ω )

Low On-Resistance (<100Ω )

Guaranteed Flat On-Resistance over Signal Range (<10Ω)

Guaranteed Low Charge Injection (<5pC)

NO-Off Leakage Current <2nA at +85°C

COM-Off Leakage Current <5nA at +85°C ♦ Electrostatic Discharge Protection >2000V ♦ Single-Supply Operation (+2.7V to +15V) Bipolar-Supply Operation (±2.7V to ±8V) ♦ Low Power Consumption (<300µW) ♦ Rail-to-Rail Signal Handling ♦ TTL/CMOS-Logic Compatible

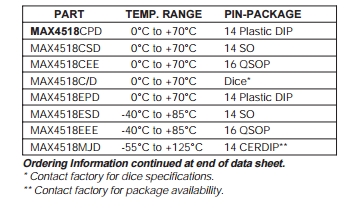

Ordering Information

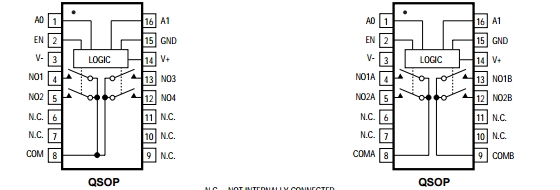

Pin Configurations

ABSOLUTE MAXIMUM RATINGS

Continuous Power Dissipation (TA = +70°C)

Plastic DIP (derate 10.0mW/°C above +70°C) ............800mW

Narrow SO (derate 8.0mW/°C above +70°C) ..............640mW

QSOP (derate 9.52mW/°C above +70°C)....................762mW

CERDIP (derate 9.09mW/°C above +70°C).................727mW

Operating Temperature

Ranges MAX4518C_ _ /MAX4519C_ _ ............................0°C to +70°C

MAX4518E_ _ /MAX4519E_ _ ..........................-40°C to +85°C MAX4518MJD/MAX4519MJD........................-55°C to +125°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10sec) .............................+300°C

ELECTRICAL CHARACTERISTICS—Dual Supplies (V+ = +4.5V to +5.5V, V- = -4.5V to -5.5V, GND = 0V, VAH = VENH = 2.4V, VAL = VENL = 0.8V, TA = TMIN to TMAX, unless otherwise noted.)
