    Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier

    Ask Lasest Price
    Brand Name : VISHAY
    Model Number : SS1H10-E3-61T
    Certification : Original Factory Pack
    Price : Negotiate
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 20000
    Delivery Time : 1
    • Product Details
    • Company Profile

    Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier

    Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier


    FEATURES

    • Low profile package

    • Ideal for automated placement

    • Guardring for overvoltage protection

    • Low power losses, high efficiency

    • Low forward voltage drop

    • Low leakage current

    • High surge capability

    • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

    • Solder dip 260 °C 40 s

    • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC


    PRIMARY CHARACTERISTICS
    IF(AV)1.0 A
    VRRM90 V to 100 V
    IFSM50 A
    VF0.62 V
    IR1.0 µA
    TJ max.175 °C

    TYPICAL APPLICATIONS

    For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.


    MECHANICAL DATA

    Case: DO-214AC (SMA) Epoxy meets UL 94V-0 flammability rating


    Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102


    E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test


    Polarity: Color band denotes the cathode end

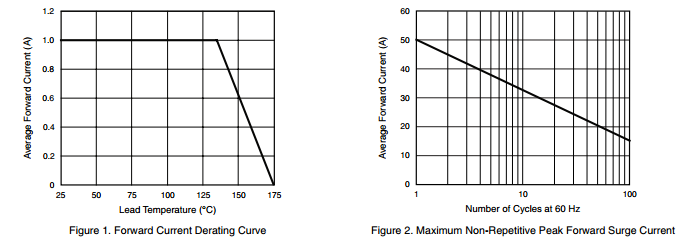

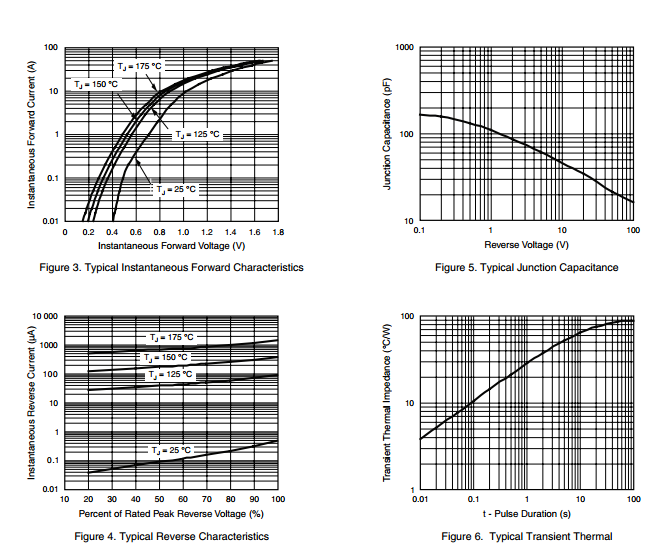

    RATINGS AND CHARACTERISTICS CURVES

    (TA = 25 °C unless otherwise noted)
