    SMD Ferrite Bead Model

    Ask Lasest Price
    Brand Name : ATERWELL
    Model Number : EEEFK1V331P
    Certification : Original Factory Pack
    Price : Negotiation
    Payment Terms : T/T , Western Union, Paypal
    Supply Ability : 55000PCS
    Delivery Time : 1 Day
    • Product Details
    • Company Profile

    SMD Ferrite Bead Model

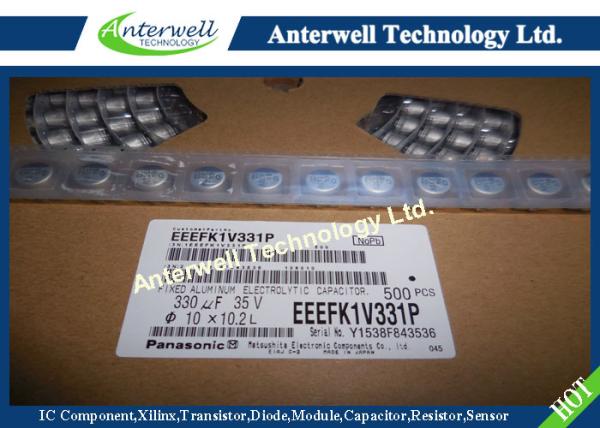

    EEEFK1V331P SMD Aluminum Electrolytic Capacitors


    Surface Mount Type

    Series: FK Type: V


    ■ Features

    ● Endurance: 2000 h to 5000 h at 105 °C

    ● RoHS directive compliant S

    ● Low impedance (40 % to 60 % less than FC series) Miniaturized (30 % to 50 % less than FC series)

    ● Vibration-proof product is available upon request. (φ8 mm and larger)


    Marking



    j6.3V
    A10V
    C16V
    E25V
    V35V
    H50V
    J63V
    K80V
    2A100V

    Di men sions in mm (not to scale) Unit:mm

    Size codeDLA,BHIWPK
    B4.05.8±0.34.35.5 max.1.80.65±0.11.00.35 +1.5 - 0.2
    C5.05.8±0.35.36.5 max.2.20.65±0.11.50.35 +1.5 - 0.2
    D6.35.8±0.36.67.8 max.2.60.65±0.11.80.35 +1.5 - 0.2
    D86.37.7±0.36.67.8 max.2.60.65±0.11.80.35 +1.5 - 0.2
    E8.06.2±0.38.39.5 max.3.40.65±0.12.20.35 +1.5 - 0.2
    F8.010.2±0.38.310.0 max.3.40.90±0.23.10.70±0.2
    G10.010.2±0.310.312.0 max.3.50.90±0.24.60.70±0.2
    H1312.513.5±0.513.515.0max.4.70.90±0.34.40.70±0.3
    J1616.016.5±0.517.019.0 max.5.51.20±0.36.70.70±0.3
    K1618.016.5±0.519.021.0 max.5.71.20±0.36.70.70±0.3
