    Ceramic Capacitors SMD Ferrite Bead C1608X5R1A226MT For General

    Ask Lasest Price
    Brand Name : ANTERWELL
    Model Number : C1608X5R1A226MT
    Certification : Original Factory Pack
    Price : Negotiation
    Payment Terms : T/T , Western Union, Paypal
    Supply Ability : 400000PCS
    Delivery Time : 1 Day
    • Product Details
    • Company Profile

    Ceramic Capacitors SMD Ferrite Bead C1608X5R1A226MT For General

    Ceramic Capacitors SMD Ferrite Bead C1608X5R1A226MT For General


    Ceramic Capacitors C1608X5R1A226MT For General Use SMD


    FEATURES


    • High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers.

    • A monolithic structure ensures superior mechanical strength and reliability.

    • High-accuracy automatic mounting is facilitated through the maintenance of very precise dimensional tolerances.

    • Composed of only ceramics and metals, these capacitors provide extremely dependable performance, exhibiting virtually no degradation even when subjected to temperature extremes.

    • Low stray capacitance ensures high conformity with nominal values, thereby simplifying the circuit design process.

    • Low residual inductance assures superior frequency characteristics.

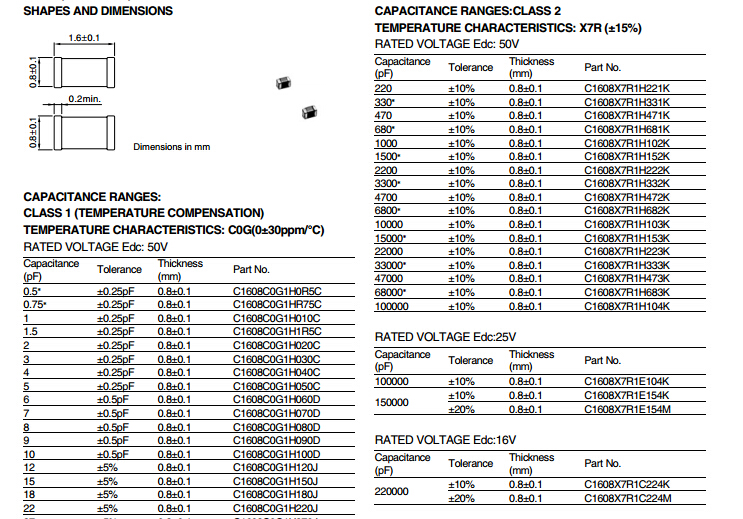

    PRODUCT IDENTIFICATION

    C 1005 CH 1H 100 D □

    (1) (2) (3) (4) (5) (6) (7)


    Dimensions L×W

    0603 0.6×0.3mm

    1005 1.0×0.5mm

    1608 1.6×0.8mm

    2012 2.0×1.25mm

    3216 3.2×1.6mm


    Capacitance temperature characteristics

    Temperature characteristics Capacitance change Temperature range

    C0G 0±30ppm/°C –55 to +125°C


    Temperature characteristics Capacitance change Temperature range

    X7R ±15% –55 to +125°C

    X5R ±15% –55 to +85°C

    Y5V +22, –82% –30 to +85°C


    Rated voltage Edc


    0J6.3v
    1A10V
    1C16V
    1E25V
    1H50V
