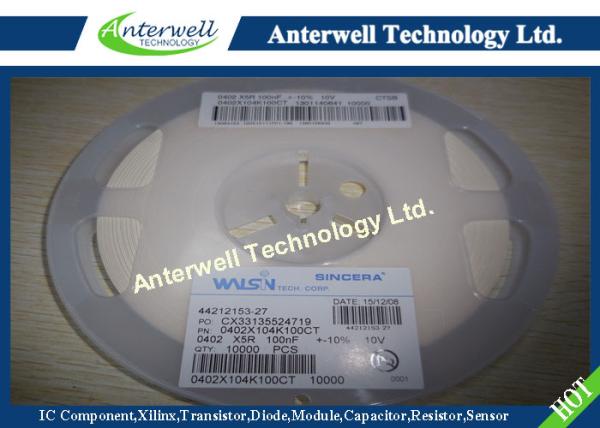

    100NF X5R SMD Ferrite Bead Electrolytic Capacitors 0402X104K100CT SMD0402

    Ask Lasest Price
    Brand Name : CHINA
    Model Number : 0402X104K100CT
    Certification : Original Factory Pack
    Price : negotiation
    Payment Terms : T/T , Western Union, Paypal
    Supply Ability : 1000000PCS
    Delivery Time : Stock offer
    • Product Details
    • Company Profile

    100NF X5R SMD Ferrite Bead Electrolytic Capacitors 0402X104K100CT SMD0402


    100NF X5R SMD Ferrite Bead Electrolytic Capacitors 0402X104K100CT SMD0402


    Dielectric offers an operating temperature range from -55°C to +150°C with capacitance shift limited to ±15% from -55°C to +125°C and +15, -40% from 125°C to 150°C. Product applications include harsh environments such as Down Hole (Oil Exploration), Automotive (Under Hood), Military and Aerospace.


    Five standard package options are available which include EIA 0402, 0603, 0805, 1206, and 1210 case sizes. Devices are available in dc voltage ratings of 10V, 25V and 50V, with capacitance offerings ranging from 10pF to 0.22μF. Capacitance tolerances offerings include ±5%, ±10% and ±20.


    All parts are environmentally friendly, in compliance with RoHS legislation (RoHS 6/6) and are being offered in both commercial and automotive grades with 100% pure matte tin-plated terminations that allow for excellent solderability. A Sn/Pb termination option is also available upon request.


    Dimensions - Millimeters (Inches)


    International CodeSize CodeReel Quantity
    (pcs)
    Length
    (mm)
    Width
    (mm)
    Thickness
    (mm)
    010050402200000.250.1250.13
    02010603100000.60.30.3
    04021005100001.00±0.050.05±0.050.50±0.05
    060316084000-50001.60±0.100.80±0.100.80±0.10
    080520124000-50002.00±0.201.25±0.200.70±0.20
    1206321620003.20±0.301.60±0.200.70±0.20
    1210322520003.20±0.302.50±0.301.25±0.30
    1808452010004.50±0.402.00±0.202.00±0.30
    1812453210004.50±0.403.20±0.302.50±0.30
    1825456410004.50±0.406.40±0.400.61±0.36
    2225576410005.70±0.506.40±0.502.50±0.30
    251263325006.30±0.503.20±0.502.50±0.30
    303576904007.60±0.509.00±0.053.00±0.30
    case A321620003.20±0.201.60±0.201.60±0.20
    case B352820003.50±0.202.80±0.201.90±0.20
    case C60325006.00±0.203.20±0.202.60±0.20
    case D734350030±0.204.30±0.202.80±0.20
    case E7343H4007.30±0.204.10±0.204.00±0.20

    DF Limits are: 10 Volts: 3.5% 25 and 50 volts: 2.5%
