ON 1SMA15CAT3G
400 Watt Peak Power Zener Transient Voltage Suppressors
Features
• Working Peak Reverse Voltage Range - 10 V to 78 V
• Standard Zener Breakdown Voltage Range - 11.7 V to 91.3 V
• Peak Power - 400 Watts @ 1 ms
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Response Time is Typically < 1 ns

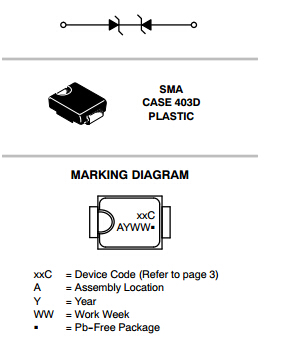

• Flat Handling Surface for Accurate Placement •Package Design for Top Slide or Bottom Circuit Board Mounting •Low Profile Package •Pb-Free Packages are Available Mechanical Characteristics: CASE: Void‐free, transfer‐molded plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds POLARITY: Cathode polarity notch does not indicate polarity MOUNTING POSITION: Any PLASTIC
MAXIMUM RATING
Rating | Symbol | Value | Unit |
Peak Power Dissipation TL=25 ℃ Pulse Width=1 ms | Ppx | 400 | W |
DC Power Dissipation TL=25 ℃ Derate Above 75 ℃ Thermal Resistance from Junction-to-Lead | Pd RøJL | 1.5 20 50 | W mW/℃ ℃/W |
DC Power Dissipation TL=25 ℃ Derate Above 75 ℃ Thermal Resistance from Junction-to-Ambient | Pd RøJA | 0.5 4.0 250 | W mW/℃ ℃/W |
Operating and Storage Temperature Range | TJ Tstg | -60 to +150 | ℃ |
![]() |
