    LP3875 1.5A Electric Circuit Board IC Fast Ultra Low Dropout Linear Regulators

    Ask Lasest Price
    Brand Name : NSC
    Model Number : LP3875-ADJ
    Certification : Original Factory Pack
    Price : Negotiation
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 5000PCS
    Delivery Time : 1 Day
    • Product Details
    • Company Profile

    LP3875 1.5A Electric Circuit Board IC Fast Ultra Low Dropout Linear Regulators

    LP3875 1.5A Electric Circuit Board IC Fast Ultra Low Dropout Linear Regulators


    LP3875-ADJ 1.5A Fast Ultra Low Dropout Linear Regulators


    General Description


    The LP3875-ADJ fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3875-ADJ is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3875-ADJ to operate under extremely low dropout conditions. Dropout Voltage: Ultra low dropout voltage; typically 38mV at 150mA load current and 380mV at 1.5A load current. Ground Pin Current: Typically 6mA at 1.5A load current. Shutdown Mode: Typically 10nA quiescent current when the shutdown pin is pulled low. Adjustable Output Voltage: The output voltage may be programmed via two external resistors.


    Features

    n Ultra low dropout voltage

    n Low ground pin current

    n Load regulation of 0.06%

    n 10nA quiescent current in shutdown mode

    n Guaranteed output current of 1.5A DC

    n Available in TO-263, TO-220 and SOT-223 packages

    n Minimum output capacitor requirements

    n Overtemperature/overcurrent protection

    n −40˚C to +125˚C junction temperature range


    Applications

    n Microprocessor power supplies n GTL, GTL+, BTL, and SSTL bus terminators

    n Power supplies for DSPs n SCSI terminator

    n Post regulators

    n High efficiency linear regulators

    n Battery chargers

    n Other battery powered applications

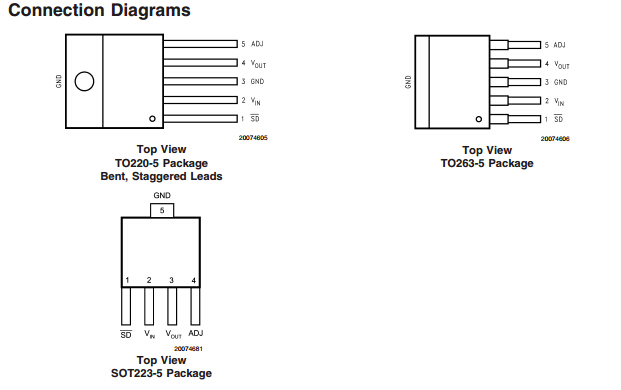

    Pin Description for TO220-5 and TO263-5 Package

    PIN#NameFunction
    1SDShutdown
    2VINInput Supply
    3GNDGround
    4VOUTOutput Voltage
    5ADJSet Output Voltage
