Single Integrated Circuit Chip TNY275PG Energy Effi Cient Off Line
Switcher
TNY274-280
TinySwitch-III Family
Energy-Effi cient, Off-Line Switcher With Enhanced Flexibility and
Extended Power Range
Product Highlights
Lowest System Cost with Enhanced Flexibility
Simple ON/OFF control, no loop compensation needed
Selectable current limit through BP/M capacitor value
Higher current limit extends peak power or, in open frame
applications, maximum continuous power
Lower current limit improves effi ciency in enclosed
adapters/chargers
Allows optimum TinySwitch-III choice by swapping devices with no
other circuit redesign
Tight I2 f parameter tolerance reduces system cost Maximizes
MOSFET and magnetics power delivery Minimizes max overload power,
reducing cost of transformer, primary clamp & secondary components
ON-time extension – extends low line regulation range/hold-up time
to reduce input bulk capacitance
Self-biased: no bias winding or bias components
Frequency jittering reduces EMI fi lter costs
Pin-out simplifi es heatsinking to the PCB
SOURCE pins are electrically quiet for low EMI
Enhanced Safety and Reliability Features
Accurate hysteretic thermal shutdown protection with automatic
recovery eliminates need for manual reset
Improved auto-restart delivers <3% of maximum power in short
circuit and open loop fault conditions
Output overvoltage shutdown with optional Zener
Line undervoltage detect threshold set using a single optional
resistor
Very low component count enhances reliability and enables
single-sided printed circuit board layout
High bandwidth provides fast turn on with no overshoot and
excellent transient load response
Extended creepage between DRAIN and all other pins improves fi eld
reliability
TinySwitch-III Functional Description
TinySwitch-III combines a high voltage power MOSFET switch with a
power supply controller in one device. Unlike conventional PWM
(pulse width modulator) controllers, it uses a simple ON/OFF
control to regulate the output voltage.
The controller consists of an oscillator, enable circuit (sense and
logic), current limit state machine, 5.85 V regulator, BYPASS/
MULTI-FUNCTION pin undervoltage, overvoltage circuit, and current
limit selection circuitry, over-temperature protection, current
limit circuit, leading edge blanking, and a 700 V power MOSFET.
TinySwitch-III incorporates additional circuitry for line
undervoltage sense, auto-restart, adaptive switching cycle ontime

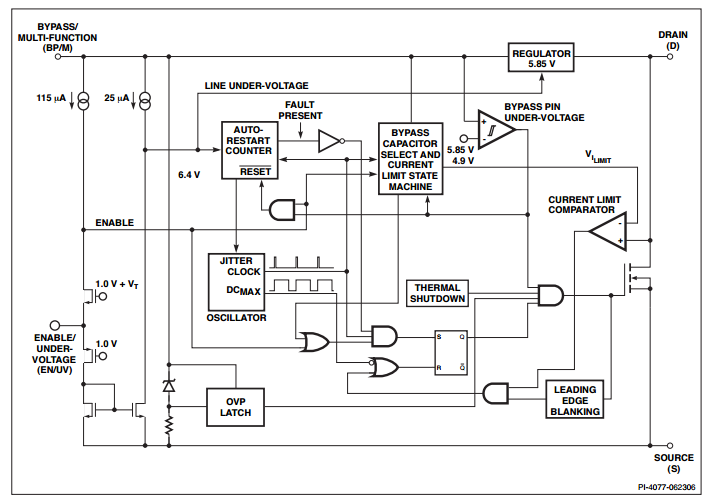

extension, and frequency jitter. Figure 2 shows the functional
block diagram with the most important features.
