BD681 NPN Darlington Power Transistors Medium Power Switching

■ SGS-THOMSON PREFERRED SALESTYPES

■ COMPLEMENTARY PNP - NPN DEVICES

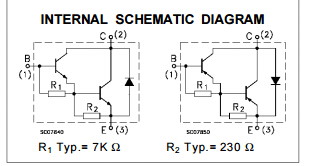

■ MONOLITHIC DARLINGTON CONFIGURATION

■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE

APPLICATION

■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT

DESCRIPTION

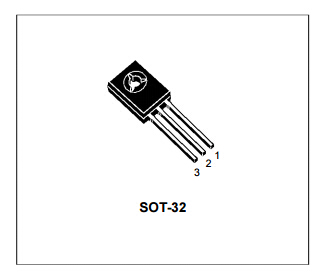

The BD677, BD677A, BD679, BD679A and BD681 are silicon epitaxial-base NPN power transistors in monolithic Darlington configuration mounted in Jedec SOT-32 plastic package. They are intended for use in medium power linar and switching applications The complementary PNP types are BD678, BD678A, BD680, BD680A and BD682 respectively.

Safe Operating Areas
