    Switching Power Mosfet Transistor IXFH60N50P3 Fast Intrinsic Rectifier

    Switching Power Mosfet Transistor IXFH60N50P3 Fast Intrinsic Rectifier


    Polar3TM HiperFETTM IXFT60N50P3 VDSS = 500V

    Power MOSFET IXFQ60N50P3 I D25 = 60A

    IXFH60N50P3 RDS(on) ≤ 100mΩ


    N-Channel Enhancement Mode

    Avalanche Rated

    Fast Intrinsic Rectifier


    SymbolTest ConditionsMaximum Ratings

    VDSS

    VDGR

    TJ = 25°C to 150°C

    TJ = 25°C to 150°C, RGS = 1MΩ

    500 V

    500 V

    VGSS

    VGSM

    Continuous

    Transient

    ± 30 V

    ± 40 V

    I D25

    I DM

    TC = 25°C

    TC = 25°C, Pulse Width Limited by TJM

    60 A

    150 A

    I A

    EAS

    TC = 25°C

    TC = 25°C

    30 A

    1 J

    dv/dtIS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C35 V/ns
    PDTC = 25°C1040 W

    TJ

    TJM

    Tstg

    -55 ... +150 °C

    150 °C

    -55 ... +150 °C

    TL

    Tsold

    1.6mm (0.062in.) from Case for 10s

    Plastic Body for 10 seconds

    300 °C

    260 °C

    MdMounting Torque (TO-247 & TO-3P)1.13 / 10 Nm/lb.in.
    Weight

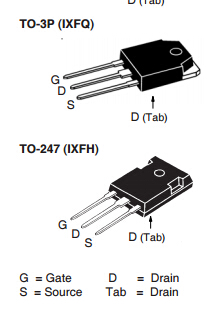

    TO-268

    TO-3P

    TO-247

    4.0 g

    5.5 g

    6.0 g


    Features

    Fast Intrinsic Rectifier

    Avalanche Rated

    Low RDS(ON) and QG

    Low Package Inductance


    Advantages

    High Power Density

    Easy to Mount

    Space Savings


    Applications

    Switch-Mode and Resonant-Mode Power Supplies

    DC-DC Converters z Laser Drivers

    AC and DC Motor Drives

    Robotics and Servo Controls


    Fig. 1. Output Characteristics @ TJ = 25ºC Fig. 2. Extended Output Characteristics @ TJ = 25ºC


    Fig. 3. Output Characteristics @ TJ = 125ºC Fig. 4. RDS(on) Normalized to ID = 30A Value vs. Junction Temperature


    Fig. 5. RDS(on) Normalized to ID = 30A Value vs. 6. Maximum Drain Current vs. Case Drain CurrentFig. Temperature

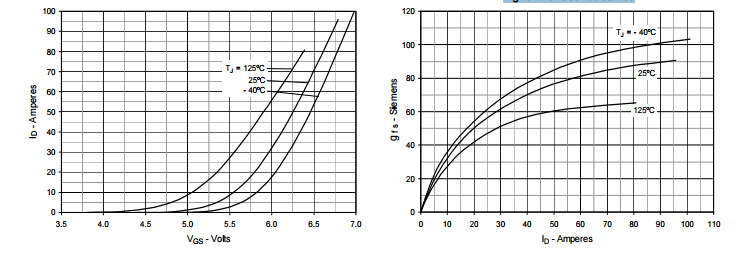

    Fig. 7. Input Admittance Fig. 8. Transconductance
