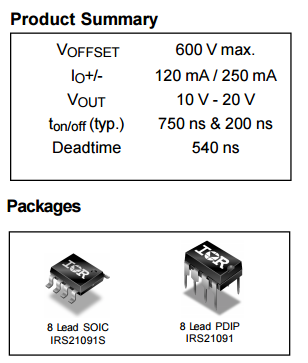

IRS21091(S)PbF

HALF-BRIDGE DRIVER

Features

· Floating channel designed for bootstrap operation

· Fully operational to +600 V

· Tolerant to negative transient voltage, dV/dt immune

· Gate drive supply range from 10 V to 20 V

· Undervoltage lockout for both channels

· 3.3 V, 5 V, and 15 V input logic compatible

· Cross-conduction prevention logic

· Matched propagation delay for both channels

· High-side output in phase with IN input

· Logic and power ground +/- 5 V offset

· Internal 500 ns deadtime,

and programmable up to 5 µs with one external RDT resistor

· Lower di/dt gate driver for better noise immunity

· The dual function DT/SD input turns off both channels

· RoHS compliant

Description

The IRS21091 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.

Typical Connection
