16K - Bit CMOS PARALLEL E2PROM ic integrated circuit CAT28C17AP -20

FEATURES

■ Fast Read Access Times: 200 ns

■ Low Power CMOS Dissipation: –Active: 25 mA Max. –Standby: 100 µA Max.

■ Simple Write Operation: –On-Chip Address and Data Latches –Self-Timed Write Cycle with Auto-Clear

■ Fast Write Cycle Time: 10ms Max

■ End of Write Detection: –DATA Polling –RDY/BSY Pin

■ Hardware Write Protection

■ CMOS and TTL Compatible I/O

■ 10,000 Program/Erase Cycles

■ 10 Year Data Retention

■ Commercial,Industrial and Automotive Temperature Ranges

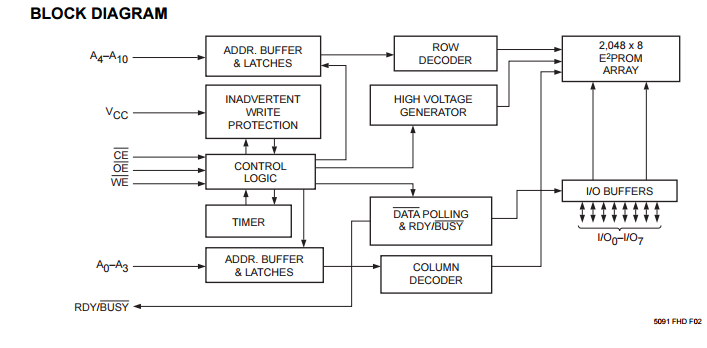

BLOCK DIAGRAM

DESCRIPTION

The CAT28C17A is a fast, low power, 5V-only CMOS parallel E2PROM organized as 2K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protection hardware. DATA Polling and a RDY/BSY pin signal the start and end of the self-timed write cycle. Additionally, the CAT28C17A features hardware write protection. The CAT28C17A is manufactured using Catalyst’s advanced CMOS floating gate technology. It is designed to endure 10,000 program/erase cycles and has a data retention of 10 years. The device is available in JEDEC approved 28-pin DIP and SOIC or 32-pin PLCC packages.
