1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3

    Buy cheap 1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3 from wholesalers

    Buy cheap 1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3 from wholesalers
    • Buy cheap 1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3 from wholesalers

    1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3

    Ask Lasest Price
    Brand Name : NSC
    Model Number : LM1117T-3
    Certification : Original Factory Pack
    Price : Negotiate
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 20000
    Delivery Time : 1
    • Product Details
    • Company Profile

    1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3

    1A LOWDROP OUT VOLTAGE transistor socket 3 pin LM1117T -3


    General Description

    The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. The LM1117 series is available in LLP, TO-263, SOT-223, TO-220, and TO-252 D-PAK packages. A minimum of 10µF tantalum capacitor is required at the output to improve the transient response and stability


    Features

    ♦ Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions

    ♦ Space Saving SOT-223 and LLP Packages

    ♦ Current Limiting and Thermal Protection

    ♦ Output Current 800mA

    ♦ Line Regulation 0.2% (Max)

    ♦ Load Regulation 0.4% (Max)

    ♦ Temperature Range

    — LM1117 0˚C to 125˚C

    — LM1117I −40˚C to 125˚C


    Applications

    ♦ 2.85V Model for SCSI-2 Active Termination

    ♦ Post Regulator for Switching DC/DC Converter

    ♦ High Efficiency Linear Regulators

    ♦ Battery Charger

    ♦ Battery Powered Instrumentation

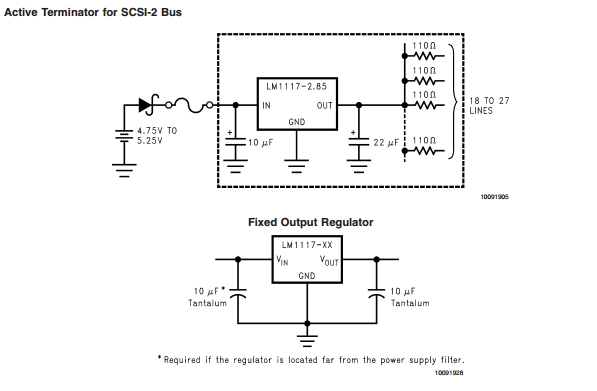

    Typical Application
