    Programmable Controllers AC / DC-Input Module Solid State Relay TLP532


    TLP531,TLP532

    Programmable Controllers AC / DC−Input Module Solid State Relay


    The TOSHIBA TLP531 and TLP532 consist of a photo−transistor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP.

    TLP532 is no−base internal connection for high−EMI environments.

    • Collector−emitter voltage: 55 V (min.)
    • Current transfer ratio: 50% (min.)
    • Rank GB: 100% (min.)
    • Isolation voltage: 2500 Vrms (min.)
    • UL recognized: UL1577, file no. E67349 Pi

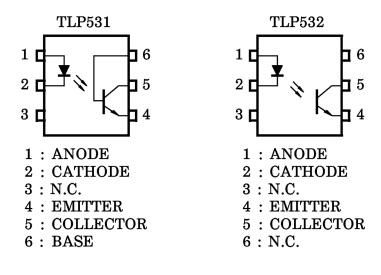

    Pin Configurations (top view)



    Maximum Ratings (Ta = 25°C)

    CharacteristicSymbolRatingUnit
    LEDForward currentIF70mA
    Forward current derating (Ta ≥ 50°C)∆IF / °C0.93mA / °C
    Peak forward current (100 µs pulse, 100pps)IFP1A
    Reverse voltageVR5V
    Junction temperatureTj125°C
    DetectorCollectoremitter voltageVCEO55V
    Collectorbase voltage (TLP531)VCBO80V
    Emittercollector voltageVECO7V
    Emitterbase voltage (TLP531)VEBO7V
    Collector currentIC50mA
    Power dissipationPC150mW
    Power dissipation derating (Ta ≥ 25°C)∆PC / °C-1.5mW / °C
    Junction temperatureTj125°C
    Storage temperature rangeTstg55~125°C
    Operating temperature rangeTopr55~100°C
    Lead soldering temperature (10s)Tsol260°C
    Total package power dissipationPT250mW
    Total package power dissipation derating (Ta ≥ 25°C)∆PT / °C-2.5mW / °C
    Isolation voltage (AC, 1min., R.H.≤ 60%)BVS2500Vrms

    Recommends Operating Conditions

    CharacteristicSymbolMin.Typ.Max.Unit
    Supply voltageVCC--524V
    Forward currentIF--1625mA
    Collector currentIC--110mA
    Operating temperatureTopr-25--85°C
