    Fiber Optic Receiving Module Mosfet Power Module TORX173


    FIBER OPTIC RECEIVING MODULE TORX173


    FIBER OPTIC RECEIVING MODULE FOR DIGITAL AUDIO EQUIPMENT

    • Conform to JEITA Standard CP−1201 (For Digital Audio Interfaces including Fiber Optic inter−connections).
    • TTL Interface
    • ATC (Automatic Threshold Control) Circuit is used for stabilized output at a wide range of optical power level. 1

    Unit: mm


    1. Maximum Ratings (Ta = 25°C)

    CharacteristicsSymbolRatingUnit
    Storage TemperatureTstg−40 to 70°C
    Operating TemperatureTopr−20 to 70°C
    Supply VoltageVCC−0.5 to 7V
    Low Level Output CurrentIOL20mA
    High Level Output CurrentIOH−1mA
    Soldering TemperatureTsol260 (Note 1)°C

    Note 1: Soldering time ≤ 10 s (More than 1 mm apart from the package).


    2. Recommended Operating Conditions

    CharacteristicsSymbolMin.Typ.Max.Unit
    Supply VoltageVCC4.755.05.25V
    High Level Output CurrentIOH----−150µA
    Low Level Output CurrentIOL----1.6mA

    3. Electrical and Optical Characteristics (Ta = 25°C, VCC = 5 V)

    CharacteristicsSymbolTest ConditionMinTyp.MaxUnit
    Data RateNRZ code (Note 2)DC--6Mb / s
    Transmission DistanceTOTX173 Using APF (Note 3)0.2--10m
    Pulse Width Distortion (Note 4)∆tw

    Pulse width 165 ns

    Pulse cycle 330 ns, CL = 10 pF Using TOTX173

    −20--20ns
    Maximum Receivable Power (Note 5)PMAX6 Mb / s, Using APF−14.5----dBm
    Minimum Receivable Power (Note 5)PMIN6 Mb / s, Using APF-----27dBm
    Rise TimetrCL = 10 pF--1030ns
    Fall TimetfCL = 10 pF--530ns
    Current ConsumptionICC--2240mA
    High Level Output VoltageVOH2.7----V
    Low Level Output VoltageVOL----0.4V

    Note 2: For data rate > 3 Mb / s, the duty factor must be such as kept 25 to 75%.

    High level output when optical flux is received. Low level output when optical flux is not received.

    Note 3: All Plastic Fiber (970 / 1000 µm).

    Note 4: Between input of a fiber optic transmitting module and output of TORX173. Note 5: BER ≤ 10−9 , rated by peak value.

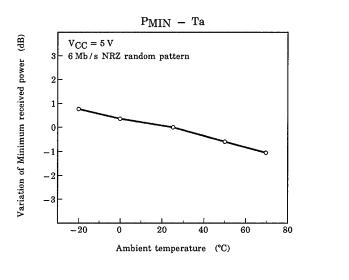

    4. Example of Typical Characteristics (Note 6)

    Note 6: There give characteristic examples, and its values are not guaranteed.


    5. Application Circuit

    6. Applicable optical fiber with fiber optic connectors.

    TOCP172−□□B
