FIBER OPTIC RECEIVING MODULE TORX173

FOR DIGITAL AUDIO EQUIPMENT

• Conform to JEITA Standard CP−1201 (For Digital Audio Interfaces including Fiber Optic inter−connections).
• TTL Interface
• ATC (Automatic Threshold Control) Circuit is used for stabilized output at a wide range of optical power level.

Note 1: For data rate > 3 Mb / s, the duty factor must be such as kept 25 to 75%. High level output when optical flux is received. Low level output when optical flux is not received.

Note 2: All Plastic Fiber (970 / 1000 µm).

Note 3: Between input of a fiber optic transmitting module and output of TORX173.

Note 4: BER ≤ 10−9 , rated by peak value.

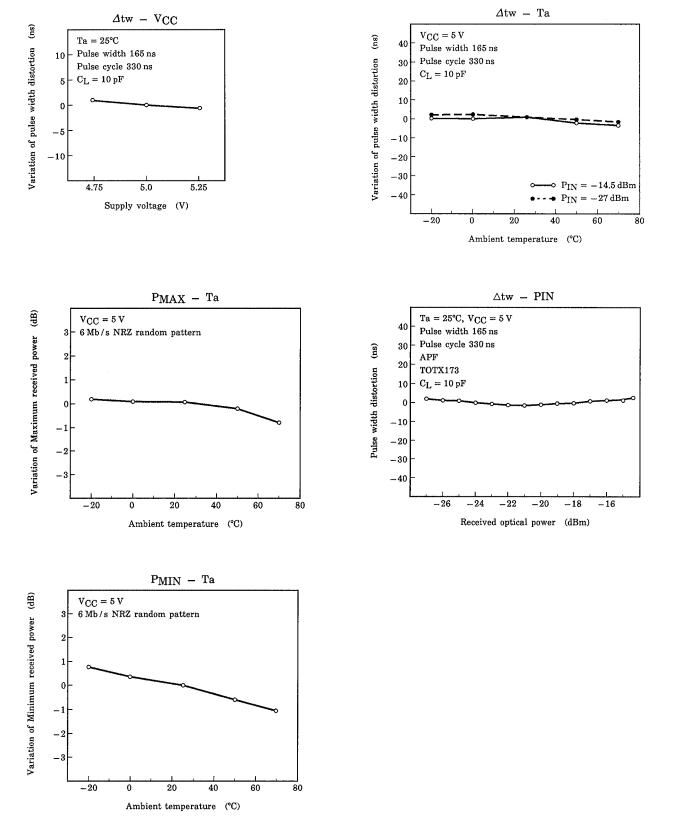

Example of Typical Characteristics (Note 5)

Application Circuit

Applicable optical fiber with fiber optic connectors.

TOCP172−□□B
