    0.5a High-Side Driver Integrated Circuit Chip Industrial Intelligent Power Switch Tde1898rdp


    TDE1897R

    TDE1898R

    0.5A HIGH-SIDE DRIVER INDUSTRIAL INTELLIGENT POWER SWITCH


    *0.5A OUTPUT CURRENT MULTIPOWER BCD TECHNOLOGY

    *18V TO 35V SUPPLY VOLTAGE RANGE

    *INTERNAL CURRENT LIMITING

    *THERMAL SHUTDOWN

    *OPEN GROUND PROTECTION

    *INTERNAL NEGATIVE VOLTAGE CLAMPING

    TO VS - 45V FOR FAST DEMAGNETIZATION

    *DIFFERENTIAL INPUTS WITH LARGE COM-

    MON MODE RANGE AND THRESHOLD

    HYSTERESIS

    *UNDERVOLTAGELOCKOUTWITH HYSTERESIS

    *OPEN LOAD DETECTION

    *TWO DIAGNOSTIC OUTPUTS

    *OUTPUT STATUS LED DRIVER


    DESCRIPTION

    The TDE1897R/TDE1898R is a monolithic Intelligent Power Switch in Multipower BCD Technology, for driving inductive or resistive loads. An internal Clamping Diode enables the fast demagnetization of inductive loads.

    Diagnostic for CPU feedback and extensive use of electrical protections make this device inherently indistructible and suitable for general purpose industrial applications.


    BLOCK DIAGRAM

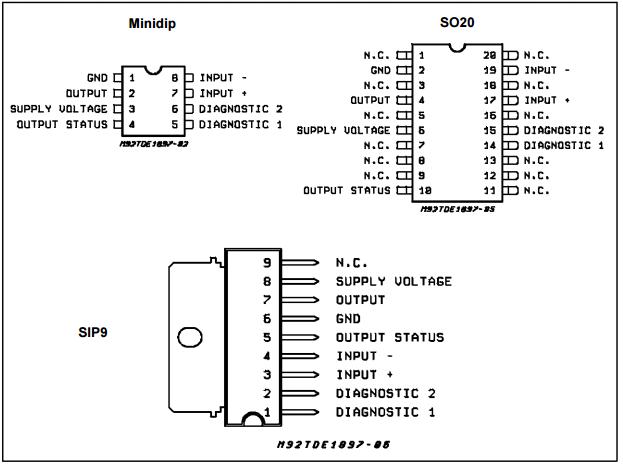

    PIN CONNECTIONS (Top view)


    ABSOLUTE MAXIMUM RATINGS (Minidip pin reference)

    SymbolParameterValueUnit
    VSSupply Voltage (Pins 3 - 1) (TW < 10ms)50V
    VS – VO

    Supply to Output Differential Voltage. See also VCl 3-2

    (Pins 3 - 2)

    internally limitedV
    ViInput Voltage (Pins 7/8)-10 to VS +10V
    ViDifferential Input Voltage (Pins 7 - 8)43V
    IiInput Current (Pins 7/8)20mA
    IOOutput Current (Pins 2 - 1). See also ISCinternally limitedA
    ElEnergy from Inductive Load (TJ = 85°C)200mJ
    PtotPower Dissipation. See also THERMAL CHARACTERISTICS.internally limitedW
    TopOperating Temperature Range (Tamb)-25 to +85°C
    TstgStorage Temperature-55 to 150°C

    THERMAL DATA

    SymbolDescriptionMinidipSipSO20Unit
    Rth j-caseThermal Resistance Junction-caseMax.10°C/W
    Rth j-ambThermal Resistance Junction-ambientMax.1007090°C/W
