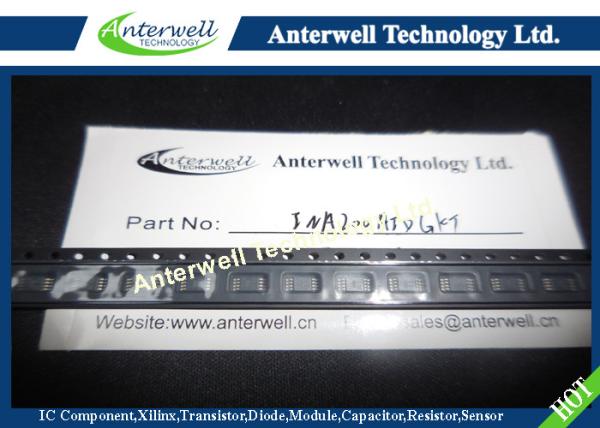

INA200AIDGKT Circuit Board Chips High Side Measurement Current-Shunt Monitor

FEATURES

• COMPLETE CURRENT SENSE SOLUTION

• 0.6V INTERNAL VOLTAGE REFERENCE

• INTERNAL OPEN-DRAIN COMPARATOR

• LATCHING CAPABILITY ON COMPARATOR

• COMMON-MODE RANGE: −16V to +80V

• HIGH ACCURACY: 3.5% MAX ERROR OVER

TEMPERATURE

• BANDWIDTH: 500kHz (INA200)

• QUIESCENT CURRENT: 1800µA (max)

• PACKAGES: SO-8, MSOP-8

APPLICATIONS

• NOTEBOOK COMPUTERS

• CELL PHONES

• TELECOM EQUIPMENT

• AUTOMOTIVE

• POWER MANAGEMENT

• BATTERY CHARGERS

• WELDING EQUIPMENT

DESCRIPTION

The INA200, INA201, and INA202 are high-side current-shunt monitors with voltage output.

The INA200−INA202 can sense drops across shunts at common-mode voltages from −16V to 80V.

The INA200−INA202 are available with three output voltage scales: 20V/V, 50V/V, and 100V/V,

with up to 500kHz bandwidth.

The INA200, INA201, and INA202 also incorporate an open-drain comparator and internal reference providing a0.6V threshold. External dividers are used to set the current trip point. The comparator includes a latching capability, which can be made transparent by grounding (or leaving open) the

RESET pin.

The INA200, INA201, and INA202 operate from a single +2.7V to +18V supply, drawing a maximum of 1800µA of supply current. Package options include the very small MSOP-8 and the SO-8. All versions

are specified over theextended operating temperature range of −40°C to +125°C.

PIN CONFIGURATIONS
