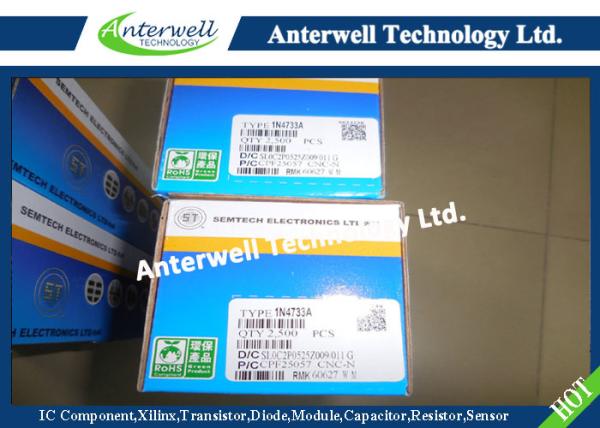

1N4728A~1N4764A

GLASS PASSIVATED JUNCTION SILICON ZENER DIODE

FEATURES

• Low profile package

• Built-in strain relief

• Low inductance

• High temperature soldering : 260°C /10 seconds at terminals

• Plastic package has Underwriters Laboratory Flammability Classification 94V-O

• Both normal and Pb free product are available :

Normal : 80~95% Sn, 5~20% Pb

Pb free: 98.5% Sn above

MECHANICAL DATA

• Case: Molded Glass DO-41G / Molded plastic DO-41

• Epoxy:UL 94V-O rate flame retardant

• Terminals: Axial leads, solderable per MIL-STD-202,

• Method 208 guaranteed • Polarity: Color band denotes positive end

• Mounting position:Any

• Weight: 0.012 ounce, 0.3 gram

• Ordering information : Suffix : “ -G ” to order Molded Glass Package Suffix : “ -P ” to order Molded plastic Package

• Packing information B - 1K per Bulk box T/R - 5K per 13" paper Reel T/B - 2.5K per horiz. tape & Ammo box

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.
