    NPN Epitaxial Silicon Transistor Power Mosfet Transistor 2SC5200


    2SC5200/FJL4315

    NPN Epitaxial Silicon Transistor


    Applications

    • High-Fidelity Audio Output Amplifier

    • General Purpose Power Amplifier


    Features

    • High Current Capability: IC = 15A.

    • High Power Dissipation : 150watts.

    • High Frequency : 30MHz.

    • High Voltage : VCEO=230V

    • Wide S.O.A for reliable operation.

    • Excellent Gain Linearity for low THD.

    • Complement to 2SA1943/FJL4215.

    • Thermal and electrical Spice models are available.

    • Same transistor is also available in:

    -- TO3P package, 2SC5242/FJA4313 : 130 watts

    -- TO220 package, FJP5200 : 80 watts

    -- TO220F package, FJPF5200 : 50 watts


    Absolute Maximum Ratings* Ta = 25°C unless otherwise noted

    SymbolParameterRatingsUnits
    BVCBOCollector-Base Voltage230V
    BVCEOCollector-Emitter Voltage230V
    BVEBOEmitter-Base Voltage5V
    ICCollector Current(DC)15A
    IBBase Current1.5A
    PD

    Total Device Dissipation(TC=25°C)

    Derate above 25°C

    150

    1.04

    W

    W/°C

    TJ, TSTGJunction and Storage Temperature- 50 ~ +150°C

    * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.


    Thermal Characteristics* Ta=25°C unless otherwise noted

    SymbolParameterMaxUnits
    RθJCThermal Resistance, Junction to Case0.83°C/W

    * Device mounted on minimum pad size


    hFE Classification

    ClassificationRO
    hFE155 ~ 11080 ~ 160

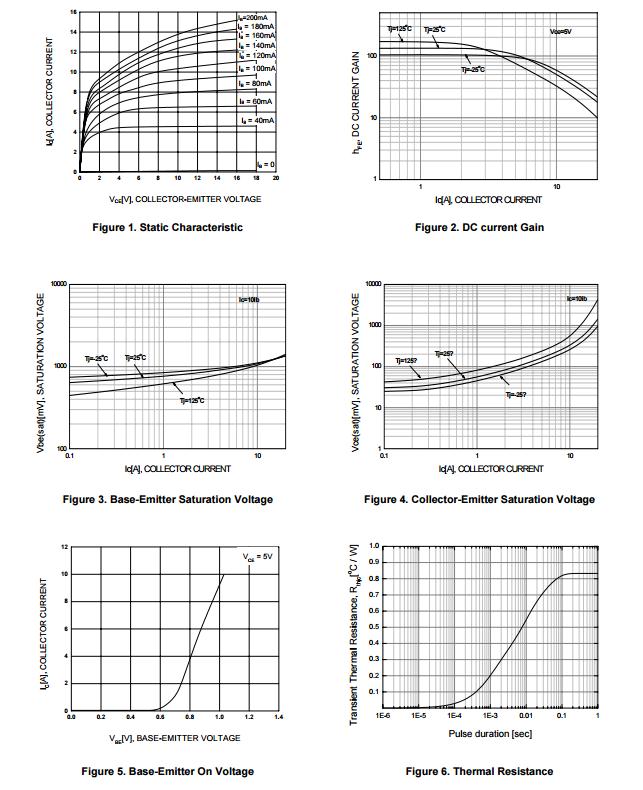

    Typical Characteristics

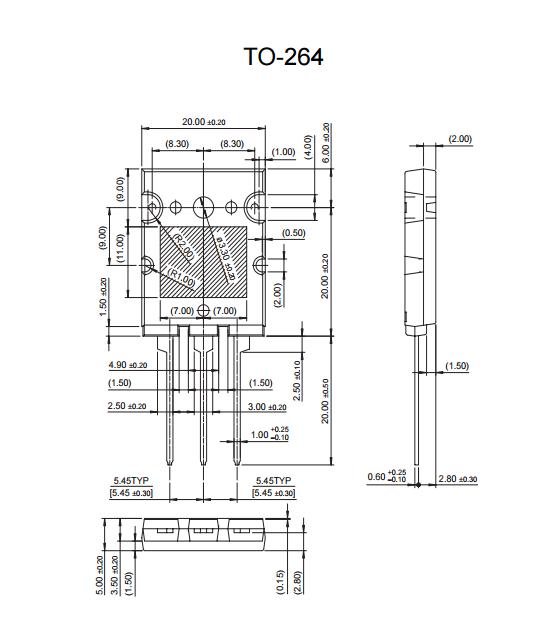

    Package Dimensions
