USB-Based Emulator Key Features

• Full speed USB 1.1 interface enabling

download speeds of up to 150 KB/sec

• Support for all ADI JTAG processors

and DSPs

• Multiple processor and DSP I/O voltage

support with automatic detection

• 1.8V, 2.5V, and 3.3V compliant

and tolerant

• 5V tolerant and 3.3V compliant

for 5V processors and DSPs

• Multiprocessor support

• 14-pin JTAG connector

• 3-meter USB cable for

difficult-to-reach targets

• CE-certified

HP USB-Based Emulator Key Features

• High speed USB 2.0 interface enabling

download speeds of up to 1.5 MB/sec

• Background Telemetry Channel (BTC)

support enabling nonintrusive data

exchange at up to 2.0 MB/sec

• Support for all ADI JTAG processors

and DSPs

• Multiple processor and DSP I/O voltage

support with automatic detection

• 1.8V, 2.5V, and 3.3V compliant

and tolerant

• 5V tolerant and 3.3V compliant

for 5V processors and DSPs

• Multiprocessor support

• JTAG clock operation up to 50 MHz

• 14-pin JTAG connector

• 3-meter USB cable for

difficult-to-reach targets

• CE-certified

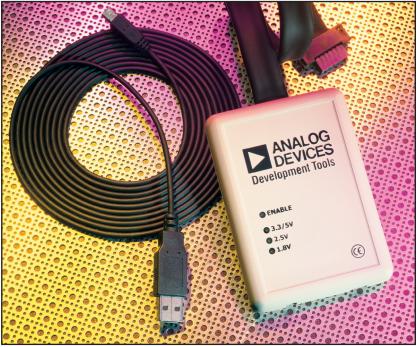

Overview

Analog Devices’ cost-effective Universal Serial Bus (USB)-based emulator and High

Performance Universal Serial Bus (HP USB)-based emulator each provide an easy,

portable, nonintrusive, target-based debugging solution for Analog Devices JTAG

processors and DSPs. These powerful USB-based emulators perform a wide range of

emulation functions, including single-step and full speed execution with pre-defined

breakpoints, and viewing and/or altering of register and memory contents. With the

ability to automatically detect and support multiple I/O voltages, the USB and HP

USB emulators enable users to communicate with all of the Analog Devices JTAG

processors and DSPs using either a full speed USB 1.1 or high speed USB 2.0 port

on the host PC. Applications and data can easily and rapidly be tested and transferred

between the emulators and the VisualDSP++™ development and debugging environment

(available separately).

The plug-and-play architecture of USB allows the emulators to be automatically

detected and configured by the host operating system. It can also be connected to and

disconnected from the host without opening the PC or turning off the power to the PC.

A 3-meter cable is included to connect the emulators to the host PC, thus providing

abundant accessibility to hard-to-reach targets.
