    Tps650250qrhbrq1 Power Management Ic Circuit Board Chips For Li-Ion Powered Systems

    Ask Lasest Price
    Brand Name : TI
    Model Number : TPS650250QRHBRQ1
    Certification : Original
    Price : 0.1USD
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000PCS/DAY
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    Tps650250qrhbrq1 Power Management Ic Circuit Board Chips For Li-Ion Powered Systems

    TPS650250QRHBRQ1 POWER MANAGEMENT IC
    FEATURES
    Qualified for Automotive Applications
    1.6A, 97% Efficient Step-Down Converter for
    System Voltage (VDCDC1)
    – 3.3V or 2.8V or Adjustable
    0.8A, up to 95% Efficient Step-Down Converter
    for Memory Voltage (VDCDC2)
    – 1.8V or 2.5V or Adjustable
    0.8A, 90% Efficient Step-Down Converter for
    Processor Core (VDCDC3)
    Adjustable Output Voltage on VDCDC3
    30mA LDO for Vdd_alive
    2 × 200mA General Purpose LDOs (LDO1 and
    LDO2)
    Dynamic Voltage Management for Processor
    Core
    LDO1 and LDO2 Voltage Externally Adjustable
    Separate Enable Pins for Inductive Converters
    2.25MHz Switching Frequency
    85mA Quiescent Current
    Thermal Shutdown Protection
    DESCRIPTION

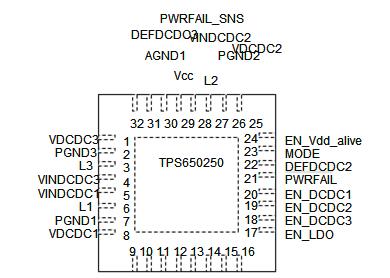

    The TPS650250 is an integrated Power Management IC for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS650250 provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor based system. All three step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents. The converters can be forced into fixed frequency PWM mode by pulling the MODE pin high. The TPS650250 also integrates two general purpose 200mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range between 1.5V and 6.5V allowing them to be supplied from one of the step-down converters or directly from the battery. The output voltage of the LDOs can be set with an external resistor divider for maximum flexibility. Additionally there is a 30mA LDO typically used to provide power in a processor based system to a voltage rail that is always on. TPS650250 comes in a small 5mm x 5mm 32-pin QFN package (RHB).
    VALUE
    UNIT
    Input voltage range on all pins except A/PGND pins with respect to AGND
    –0.3 to 7
    V
    Voltage range on pins VLDO1, VLDO2, FB_LDO1, FB_LDO2
    –0.3 to 3.6
    V
    Current at VINDCDC1, L1, PGND1, VINDCDC2, L2, PGND2, VINDCDC3, L3, PGND3
    2000
    mA
    Peak current at all other pins
    500
    mA
    Continuous total power dissipation
    See Dissipation Ratings
