    SPM6530 Step down Regulator comprising of Controller IC Synchronous DC-DC and Power MOSFET

    Ask Lasest Price
    Brand Name : EXAR
    Model Number : SPM6530
    Certification : Original
    Price : 0.1USD
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000PCS/DAY
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    SPM6530 Step down Regulator comprising of Controller IC Synchronous DC-DC and Power MOSFET

    SPM6530 Step down Regulator comprising of Controller IC
    VIN = 4.5 V to 30 V, 10 A
    Synchronous DC-DC Step down Regulator
    comprising of Controller IC and Power MOSFET
    FEATURES
    High-Speed Response DC-DC Step Down Regulator
    Circuit that employs Hysteretic Control System
    Two 11 mΩ (Typ.)
    MOSFETs for High Efficiency at 10 A
    SKIP (discontinuous) Mode for Light Load Efficiency
    Up to 10 A Output Current
    Input VoltageRange : AVIN : 4.5 V to 30 V,
    PVIN : 4.5 V to 30 V,
    Output Voltage Range : 0.75 V to 5.5 V
    Selectable Switching Frequency 250 kHz , 750 kHz ,
    1250 kHz
    Adjustable Soft Start
    Low Operating and Standby Quiescent Current
    Open Drain Power Good Indication for Output Over ,
    Under Voltage
    Built-in Under Voltage Lockout (UVLO),
    Thermal Shut Down (TSD),
    Over Voltage Detection (OVD),
    Under Voltage Detection (UVD),
    Over Current Protection (OCP),
    Short Circuit Protection (SCP)

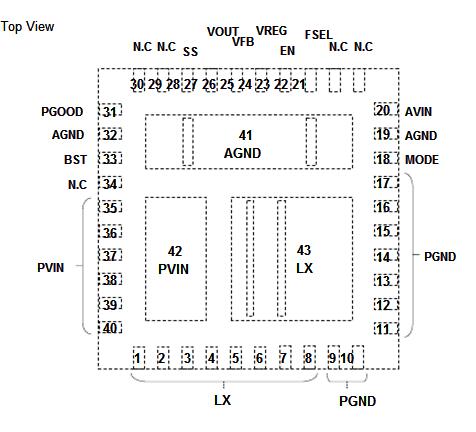

    HQFN040-A3-0606B ( Size : 6 mm X 6 mm, 0.5 mm
    pitch ), 40pin Plastic Quad Flat Non-leaded Package
    Heat Slug Down (QFN Type)
    DESCRIPTION
    NN30312A is a synchronous DC-DC Step down
    Regulator (1-ch) comprising of a Controller IC and two
    power MOSFETs and employs the hysteretic control
    system.
    By this system, when load current changes suddenly, it
    responds at high speed and minimizes the changes of
    output voltage.
    Since it is possible to use capacitors with small
    capacitance and it is unnecessary to add external parts
    for system phase compensation, this IC realizes
    downsizing of set and reducing in the number of external
    parts. Output voltage is adjustable by user.
    Maximum current is 10 A.
    APPLICATIONS
    High Current Distributed Power Systems such as
    ・HDDs (Hard Disk Drives)
    ・SSDs (Solid State Drives)
    ・PCs
    ・Game consoles
    ・Servers
    ・Security Cameras
    ・Network TVs
    ・Home Appliances
    ・OA Equipment etc.
    VOUT [V]
    RFB1 [Ω]
    RFB2 [Ω]
    5.0
    11.0 k
    1.5 k
    3.3
    4.5 k
    1.0 k
    1.8
    2.0 k
    1.0 k

    1.0

    1.0 k1.5 k
