    regulators are monolithic integrated circuits that provide all the active functions for a step-down switching LM2576T-AD


    LM2576 Series


    Description

    The LM2576 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output versions. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2576 series offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in some cases no heat sink is required. A standard series of inductors optimized for use with the LM2576 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies. Other features include a guaranteed ± 4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring 50µA (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

    Note: The LM2576HV is not produced yet.


    Features

    • 3.3V, 5V, 12V, 15V, and adjustable output versions

    • Adjustable version output voltage range

    • 1.23V to 37V (57V for HV version) ± 4% max over line and load conditions

    • Guaranteed 3A output current

    • Wide input voltage range, 40V up to 60V for HV version

    • Requires only 4 external components

    • 52 kHz fixed frequency oscillator

    • TTL shutdown capability, low power standby mode

    • High efficiency

    • Uses readily available standard inductors

    • Thermal shutdown and current limit protection


    Applications

    • Simple high-efficiency step-down (buck) regulator

    • Efficient pre-regulator for linear regulators

    • On-card switching regulators

    • Positive to negative converter (Buck-Boost)

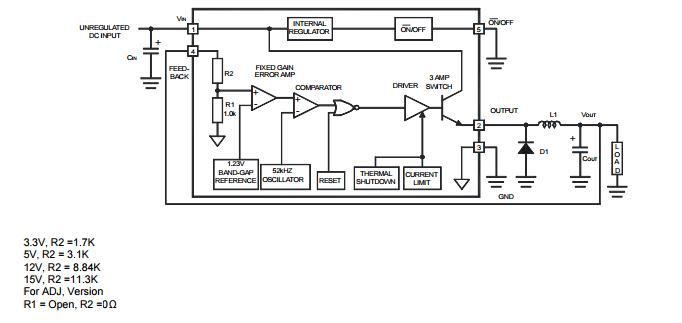

    Typical application Figure 1.(Fixed Output Voltage Versions)


    Block Diagram


    Absolute Maximum Ratings

    ParameterMaximumUnits

    Maximum Supply Voltage

    LM2576

    LM2576HV


    45

    63

    V
    ON/OFF Pin Input Voltage-0.3V ≤ V ≤ +VIN
    Output Voltage to Ground (Steady State)-1V
    Power DissipationInternally LimitedW
    Storage Temperature Range-65 to +150°C
    Maximum Junction Temperature150°C
    Minimum ESD Rating (C= 100pF, R = 1.5 kΩ)2kV
    Lead Temperature (Soldering, 10 Seconds)260°C
