    ADC78H89CIMT 7-Channel 500 Circuit Board Chips KSPS 12-Bit A/D Converter

    Ask Lasest Price
    Brand Name : NSC
    Model Number : ADC78H89CIMT
    Certification : Original
    Price : 0.1USD
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000PCS/DAY
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    ADC78H89CIMT 7-Channel 500 Circuit Board Chips KSPS 12-Bit A/D Converter

    ADC78H89CIMT 7-Channel 12-Bit A/D Converter
    General Description

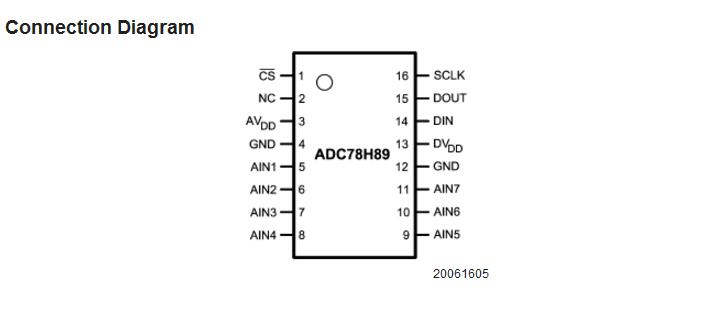

    The ADC78H89 is a low-power, seven-channel CMOS 12-bit analog-to-digital converter with a conversion throughput of 500 KSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to seven input signals on pins AIN1 through AIN7.
    The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROW-IRE™, and many common DSP serial interfaces.The ADC78H89 may be operated with independent analog and digital supplies. The analog supply (AVDD) can range from +2.7V to +5.25V, and the digital supply (DVDD) can range from +2.7V to AVDD. Normal power consumption using a +3V or +5V supply is 1.5 mW and 8.3 mW, respectively.
    The power-down feature reduces the power consumption tojust 0.3 µW using a +3V supply, or 0.5 µW using a +5V supply. The ADC78H89 is packaged in a 16-lead TSSOP package. Operation over the industrial temperature range of −40˚C to +85˚C is guaranteed.
    Features
    1.Seven input channels 2.Variable power management 3.Independent analog and digital supplies 4.SPI™/QSPI™/MICROWIRE™/DSP compatible
    5.Packaged in 16-lead TSSOP 6.Key Specifications 7.Conversion Rate 8.DNL 9.INL 10.Power Consumption — 3V Supply / 5V Supply
    Applications
    1.Automotive Navigation 2.Portable Systems 3.Medical Instruments 4.Mobile Communications 5.Instrumentation and Control Systems

    Order Code
    Temperature Range
    Description
    ADC78H89CIMT
    −40˚C to +85˚C
    16-Lead TSSOP Package
    ADC78H89CIMTX
    −40˚C to +85˚C16-Lead TSSOP Package, Tape & Reel
    ADC78H89EVAL/Evaluation Board
