    ULN2003A Programming Ic Chips High Voltage , High Current Darlington Transistor Arrays


    ULN2003A Programming Ic Chips High Voltage , High Current Darlington Transistor Arrays


    The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps.


    The ULx2003A with a 2.7 k series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.


    MAXIMUM RATINGS

    (TA = 25°C, and rating apply to any one device in the package, unless otherwise noted.)

    RatingSymbolValueUnit
    Output VoltageVO50V
    Input VoltageVI30V
    Collector Current - ContinuousIC500mA
    Base Current - ContinuousIB25mA

    Operating Ambient Temperature Range

    ULN2003A

    ULQ2003A

    TA

    -20 to +85

    -40 to +85

    °C
    Storage Temperature RangeTstg-55 to +150°C
    Junction TemperatureTJ150°C

    Thermal Resistance, Junction-to-Ambient

    Case 751B, D Suffix

    RJA100°C/W

    Thermal Resistance, Junction-to-Case

    Case 751B, D Suffix

    RJC20°C/W

    Electrostatic Discharge Sensitivity (ESD)

    Human Body Model (HBM)

    Machine Model (MM)

    Charged Device Model (CDM)

    ESD

    2000

    400

    1500

    V

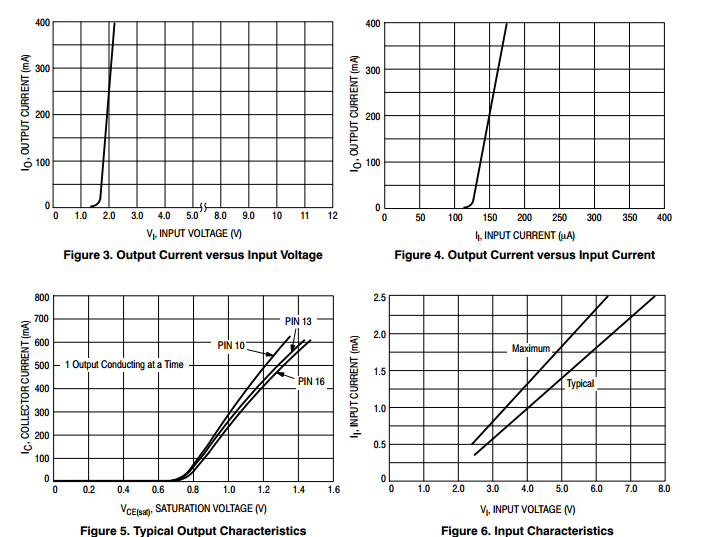

    TYPICAL PERFORMANCE CURVES - TA = 25°C
