    VIPER17L Integrated Circuit Chip new & original Off-line high voltage converters


    VIPER17
    Off-line high voltage converters

    Features
    ■ 800 V avalanche rugged power section
    ■ PWM operation with frequency jittering for low EMI
    ■ Operating frequency: – 60 kHz for L type – 115 kHz for H type
    ■ Standby power < 50 mW at 265 Vac
    ■ Limiting current with adjustable set point
    ■ Adjustable and accurate over voltage protection
    ■ On-board soft-start
    ■ Safe auto-restart after a fault condition
    ■ Hysteretic thermal shutdown

    Application
    ■ Adapters for PDA, camcorders, shavers, cellular phones, videogames
    ■ Auxiliary power supply for LCD/PDP TV, monitors, audio systems, computer, industrial systems
    ■ SMPS for set-top boxes, DVD players and recorders, white goods

    Description
    The device is an off-line converter with an 800 V rugged power section, a PWM control, two levels of over current protection, over voltage and overload protections, hysteretic thermal protection, soft-start and safe auto-restart after any fault condition removal. Burst mode operation and device very low consumption helps to meet the standby energy saving regulations.
    Advance frequency jittering reduces EMI filter cost. Brown-out function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system. The high voltage start-up circuit is embedded in the device.

    Absolute maximum ratings

    SymbolPin (DIP7)ParameterValueUnit
    VDRAIN7, 8Drain-to-source (ground) voltage800V
    EAV7, 8Repetitive avalanche energy (limited by TJ = 150 °C)2mJ
    IAR7, 8Repetitive avalanche current (limited by TJ = 150 °C)1A
    IDRAIN7, 8Pulse drain current2.5A
    VCONT3Control input pin voltage (with ICONT = 1 mA)Self limitedV
    VFB4Feed-back voltage-0.3 to 5.5V
    VBR5Brown-out input pin voltage2V
    VDD2Supply voltage (IDD = 25 mA)Self limitedV
    IDD2Input current25mA
    PTOTPower dissipation at TA < 50 °C1W
    TJOperating junction temperature range-40 to 150°C
    TSTGStorage temperature-55 to 150°C




    Typical topology

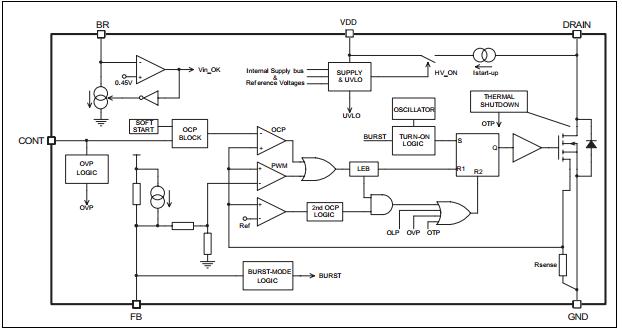

    Block diagram
