    BTA40-600B complementary silicon power transistors Mosfet Power Module 40A TRIACs

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : BTA40-600B
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 7600pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    BTA40-600B complementary silicon power transistors Mosfet Power Module 40A TRIACs


    BTA40, BTA41 and BTB41 Series
    40A TRIACS

    Main Features

    SymbolValueUnit
    IT(RMS)40A
    VDRM/VRRM600 and 800V
    IGT (Q1)50mA


    DESCRIPTION
    Available in high power packages, the BTA/ BTB40-41 series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers, ...
    Thanks to their clip assembly technique, they provide a superior performance in surge current handling capabilities.
    By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500VRMS) complying with UL standards (File ref.: E81734).

    Absolute Maximum Ratings

    SymbolParameterValueUnit
    IT(RMS)RMS on-state current (full sine wave)RD91 / TOP3Tc = 95°C40A
    TOP Ins.Tc = 80°C
    ITSMNon repetitive surge peak on-state current (full cycle, Tj initial = 25°C)F = 50 Hzt = 20 ms400A
    F = 60 Hzt = 16.7 ms420
    I² tI² t Value for fusing

    tp = 10 ms

    880A² s
    dI/dtCritical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 nsF = 120 HzTj = 125°C50A/µs
    VDSM/VRSMNon repetitive surge peak off-state voltagetp = 10 msTj = 25°C

    VDSM/VRSM

    + 100

    V
    IGMPeak gate currenttp = 20 µsTj = 125°C8A
    PG(AV)Average gate power dissipationTj = 125°C1W

    Tstg

    Tj

    Storage junction temperature range

    Operating junction temperature range

    - 40 to + 150

    - 40 to + 125

    °C

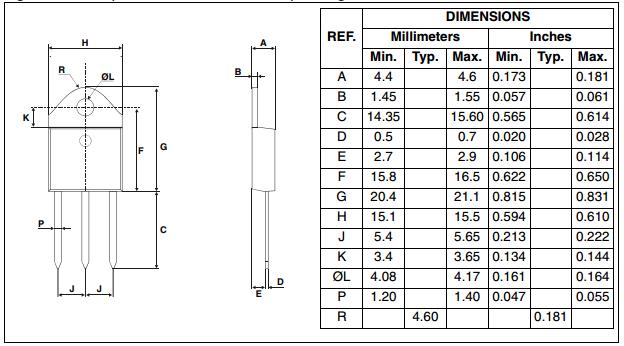

    TOP3 (Insulated and non insulated) Package Mechanical Data


    RD91 Package Mechanical Data



    Stock Offer (Hot Sell)

    Part NO.Q'tyMFGD/CPackage
    X9C104PIZ7680INTERSIL15+DIP-8
    PC354NJ0000F10000SHARP16+SOP
    X5043P3000INTERSIL13+DIP-8
    LMC7660IM3224NSC13+SOP-8
    MID400S6796FAIRCHILD12+SOP-8
    MAX3378EEUD+T12200MAXIM16+TSSOP
    NTR4101PT1G40000ON16+SOT-23
    NCP1207APG10880ON13+DIP
    MOC3163SM5609FSC12+SOP
    PIC32MX460F512L-80I/PT900MICROCHIP14+TQFP-64
    LM4871MX4783NSC15+SOP-8
    L298HN2399ST14+ZIP
    NDS8434A10000FAIRCHILD16+SOP-8
    MC34166TVG3478ON16+TO-220
    MBRF20100CTG10000ON16+TO-220
    LT3591EDDB#TRMPBF13514LINEAR14+DFN
    LM318MX2000NSC15+SOP-8
    NCP1117ST50T3G10000ON16+SOT-223
    MC33204DR2G5938ON16+SOP
    AT24C02B-PU2200ATMEL14+DIP-8
    LTC1665CGN#PBF5890LINEAR16+SSOP
