CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator

Anterwell Technology Ltd.
Contact Now
    Buy cheap CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator from wholesalers

    Buy cheap CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator from wholesalers
    • Buy cheap CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator from wholesalers

    CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator

    Ask Lasest Price
    Brand Name : TI
    Model Number : CD4060BM96
    Certification : Original
    Price : 0.1USD
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000PCS/DAY
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator


    CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary

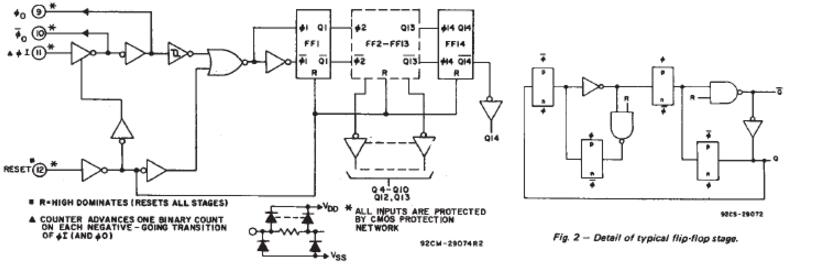

    CD4060B consists of an oscillator
    section and 14 ripple-carry binary counter
    stages. The oscillator configuration allows
    design of either RC or crystal oscillator
    circuits. A RESET input is provided which
    resets the counter to the all-O’s state and
    disables the oscillator. A high level on the
    RESET line accomplishes the reset function.
    All counter stages are master-slave flip-flops.
    The state of the counter is advanced one step
    in binary order on the negative transition of
    fI(and fO). All inputs and outputs are fully
    buffered. Schmitt trigger action on the
    input-pulse line permits unlimited
    input-pulse rise and fall times.
    The CD4060B-series types are supplied in
    16-lead hermetic dual-in-line ceramic packages
    (F3A suffix), 16-lead dual-in-line plastic
    packages (E suffix), 16-lead small-outline
    packages (M, M96, MT, and NSR suffixes), and
    16-lead thin shrink small-outline packages (PW and PWR suffixes).
    Quality CD4060BM96 IC CMOS 14-STAGE Ripple-Carry Binary Counter/Divider and Oscillator for sale
