PMBD914 high power Single high speed switching diode 100 V repetitive peak reverse voltage

PMBD914

Single high-speed switching diode

General description

Single high-speed switching diode, fabricated in planar technology, and encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package.

Features

■ High switching speed: t_rr ≤ 4 ns

■ Low capacitance: C_d ≤ 1.5 pF

■ Low leakage current

■ Reverse voltage: V_R ≤ 100 V

■ Repetitive peak reverse voltage: V_RRM ≤ 100 V

■ Small SMD plastic package

Applications

■ High-speed switching

Quick reference data

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.

[2] When switched from IF = 10 mA to IR = 10 mA; RL = 100 Ω; measured at IR = 1 mA.

Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.

[2] Tj = 25 °C prior to surge.

[3] Soldering point of cathode tab.

Reverse recovery time test circuit and waveforms

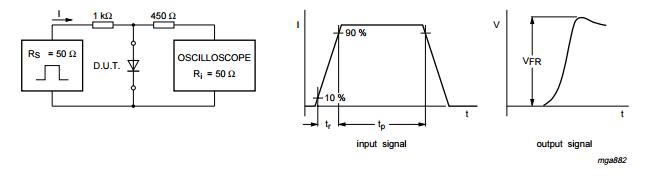

Forward recovery voltage test circuit and waveforms

Package outline SOT23 (TO-236AB)
