    Mmbd4148 High Speed Switching Diode , Surface Mount Zener Diode Fast Switching


    Mmbd4148 High Speed Switching Diode , Surface Mount Zener Diode Fast Switching


    VOLTAGE 75 Volts POWER 350 mWatts PACKAGE SOT-23


    FEATURES

    • Fast switching speed.

    • Surface mount package Ideally Suited for Automatic insertion

    • Electrically Identical to Standard JEDEC

    • High Conductance


    MECHANICAL DATA

    Case: SOT-23, Plastic

    Terminals: Solderable per MIL-STD-202, Method 208

    Approx. Weight: 0.008 gram

    Marking: A2, A3


    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

    Ratings at 25℃ ambient temperature unless otherwise specified.

    Single phase, half wave, 60 Hz, resistive or inductive load.

    For capacitive load, derate current by 20%.

    PARAMETERSYMBOLMMBD4148MMBD4448UNITS
    Reverse VoltageVR7575V
    Peak Reverse VoltageVRM100100V
    Rectified Current (Average), Half Wave Rectification with Resistive Load and f >=50 HzIO150150mA
    Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method)IFSM2.04.0A
    Power Dissipation Derate Above 25℃PTOT350350mW

    Maximum Forward Voltage @ IF= A 5m

    @ IF= A

    VF

    -

    1.0

    0.72

    1.0

    V
    Maximum DC Reverse Current at Rated DC Blocking Voltage TJ= 25℃IR2.52.5µA
    Typical Junction Capacitance( Notes1)CJ4.04.0pF
    Maximum Reverse Recovery (Notes2)TRR4.04.0ns
    Maximum Thermal ResistanceRθJA357℃ / W
    Storage Temperature RangeTJ-55 TO +125

    NOTE:

    1. CJ at VR=0, f=1MHZ

    2.From IF=10mA to IR=1mA, VR=6Volts, RL=100Ω

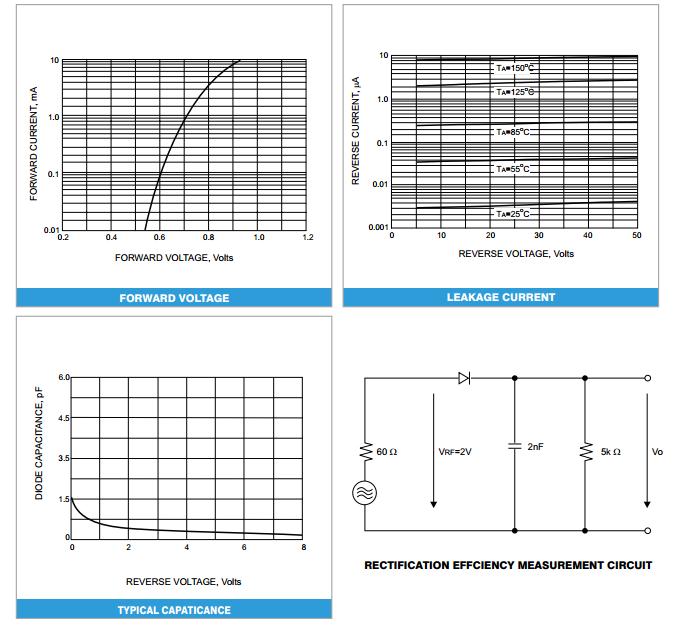

    RATING and CHARACTERISTIC CURVES


    OUTLINE DRAWING

    SOT-23
