    LM246N amplifier ic chip Integrated Circuit Chip PROGRAMMABLE QUAD BIPOLAR OPERATIONAL AMPLIFIERS


    LM146

    LM246 - LM346

    PROGRAMMABLE QUAD BIPOLAR OPERATIONAL AMPLIFIERS


    • PROGRAMMABLE ELECTRICAL CHARACTERISTICS
    • BATTERY POWERED OPERATION
    • LOW SUPPLY CURRENT (250µA/amplifier)
    • GAIN-BANDWIDTH PRODUCT : 1MHz
    • LARGE DC VOLTAGE GAIN : 120dB
    • LOW NOISE VOLTAGE : 28nV/VHz
    • WIDE POWER SUPPLY RANGE : ±1.5V to ±22V
    • CLASSE AB OUTPUT STAGE. NO CROSSOVER DISTORTION
    • OVERLOAD PROTECTION FOR INPUTS AND OUTPUTS

    DESCRIPTION

    The LM346consists of four independent, high gain, internally compensated, low power programmable amplifiers. Two external resistors (Rset) allow the user to program the gain-bandwith product, slew rate, supply current, input bias current, input offset current and input noise. For example the user can trade-off supply current for bandwidth or optimize noise figure for a given source resistance. In a similar way other amplifier characteristics can be tailored to the application.

    Except for the two programming pins at the end of the package the LM346 pin out is the same as the LM324 and LM348.


    PROGRAMMING EQUATIONS :

    Total supply current = 1mA (Iset = 10µA)

    Gain-bandwidthproduct = 1MHz (Iset = 10µA)

    Slew rate = 0.5V/µs (Iset = 10µA)

    Input bias current ≈30 nA (Iset = 10µA)

    Iset = current into pin 8 and pin 9

    Iset = VCC + − VCC − 0.6V / Rset


    ABSOLUTE MAXIMUM RATINGS

    SymbolParameterLM146LM246LM346Unit
    VCCSupply Voltage±22±22±22V
    ViInput Voltage - (note 1)±15±15±15V
    VidDifferential Input Voltage±30±30±30V
    Output Short-circuit Duration - (note 2)Infinite
    PtotPower Dissipation N/D Suffix500mW
    ToperOperating Free-air Temperature Range–55 to +125–40 to +1050 to +70
    TstgStorage Temperature Range–65 to +150–65 to +150–65 to +150

    Notes :

    1. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.

    2. Any of the amplifier outputs can be shorted to ground indefinitly ; however more than one should not be simultaneously shorted as the maximum junction temperature will be exceeded.


    PIN CONNECTIONS (top view)

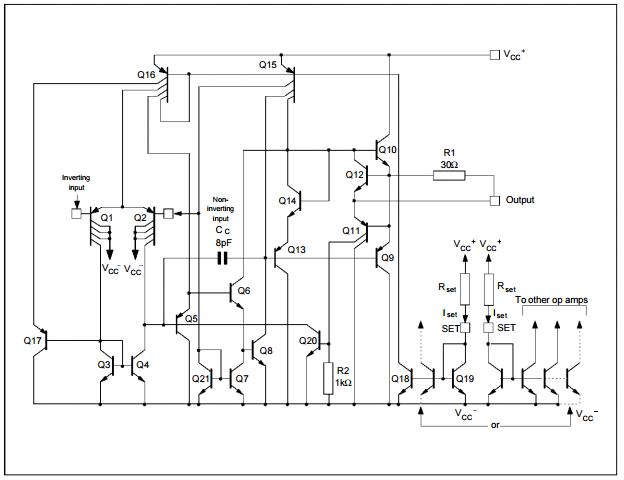

    SCHEMATIC DIAGRAM (1/4 LM146)

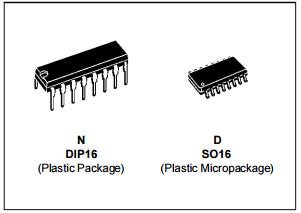

    PACKAGE MECHANICAL DATA

    16 PINS - PLASTIC DIP


    16 PINS - PLASTIC MICROPACKAGE (SO)
