    74HC273D Integrated Circuit Chip Octal D Type Flip Flop With Reset , Positive Edge Trigger


    74HC273D Integrated Circuit Chip Octal D Type Flip Flop With Reset , Positive Edge Trigger


    74HC273; 74HCT273

    Octal D-type flip-flop with reset; positive-edge trigger


    General description

    The 74HC273; 74HCT273 is an octal positive-edge triggered D-type flip-flop. The device features clock (CP) and master reset (MR) inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A LOW on MR forces the outputs LOW independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.


    Features and benefits

    • Input levels:
      • For 74HC273: CMOS level
      • For 74HCT273: TTL level
    • Common clock and master reset
    • Eight positive edge-triggered D-type flip-flops
    • Complies with JEDEC standard no. 7A
    • ESD protection:
      • HBM JESD22-A114F exceeds 2000 V
      • MM JESD22-A115-A exceeds 200 V.
    • Multiple package options
    • Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃

    Limiting values

    In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V)

    SymbolParameterConditionsMinMaxUnit
    VCCsupply voltage-0.5+7V
    IIKinput clamping currentVI < -0.5 V or VI > VCC + 0.5 V [1]-±20mA
    IOKoutput clamping currentVO < -0.5 V or VO > VCC + 0.5 V [1]-±20mA
    IOoutput current-0.5 V < VO < VCC + 0.5 V-±25mA
    ICCsupply current-50mA
    IGNDground current-50-mA
    Tstgstorage temperature-65+150
    Ptottotal power dissipationTamb = -40 ℃ to +125 ℃
    DIP20 package [2]-750mW
    SO20, SSOP20, TSSOP20 and DHVQFN20 package [3]-500mW

    [1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

    [2] For DIP20 package: above 70the value of Ptot derates linearly with 12 mW/K.

    [3] For SO20 package: above 70the value of Ptot derates linearly with 8 mW/K.

    For SSOP20 and TSSOP20 packages: above 60the value of Ptot derates linearly with 5.5 mW/K.

    For DHVQFN20 packages: Ptot derates linearly with 4.5 mW/K above 60.

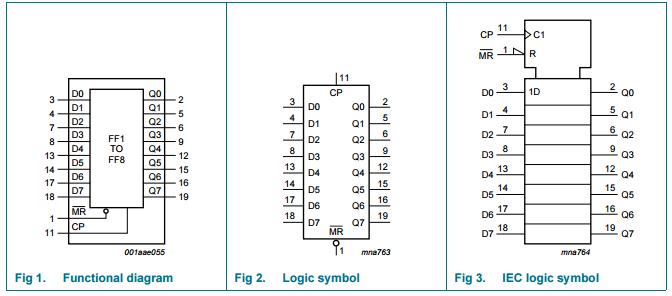

    Functional diagram


    Pinning
