    TCA0372DW Integrated Circuit Chip , Dual Power Operational Amplifier IC Chip

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : TCA0372DW
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 8300pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    TCA0372DW Integrated Circuit Chip , Dual Power Operational Amplifier IC Chip


    TCA0372DW Integrated Circuit Chip , Dual Power Operational Amplifier IC Chip


    TCA0372

    Dual Power Operational Amplifier

    The TCA0372 is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.

    • Output Current to 1.0 A

    • Slew Rate of 1.3 V/µs

    • Wide Bandwidth of 1.1 MHz

    • Internal Thermal Shutdown

    • Single or Split Supply Operation

    • Excellent Gain and Phase Margins

    • Common Mode Input Includes Ground

    • Zero Deadband Crossover Distortion


    ORDERING INFORMATION

    DeviceOperating Temperature RangePackage
    TCA0372DWTJ=-40 to +150°CSOP (12+2+2) L
    TCA0372DP1Plastic DIP
    TCA0372DP2Plastic DIP

    MAXIMUM RATINGS

    RatingSymbolValueUnit
    Supply Voltage (from VCC to VEE)VS40V
    Input Differential Voltage RangeVIDR(Note 1)V
    Input Voltage RangeVIR(Note 1)V
    Junction Temperature (Note 2)TJ+150°C
    Storage Temperature RangeTstg–55 to +150°C
    DC Output CurrentIO1.0A
    Peak Output Current (Nonrepetitive)I(max)1.5A

    NOTES:

    1. Either or both input voltages should not exceed the magnitude of VCC or VEE.

    2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded.



    Representative Block Diagram

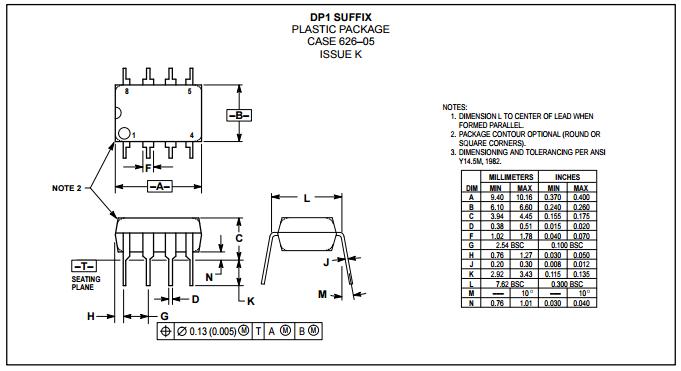

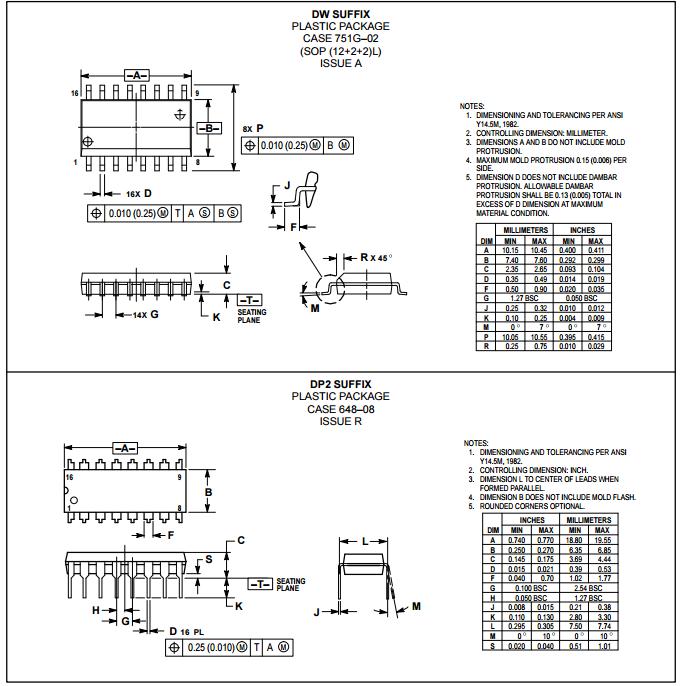

    OUTLINE DIMENSIONS
