    L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver

    Ask Lasest Price
    Brand Name : Anterwell
    Model Number : L6386D
    Certification : new & original
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 8300pcs
    Delivery Time : 1 day
    • Product Details
    • Company Profile

    L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver


    L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver


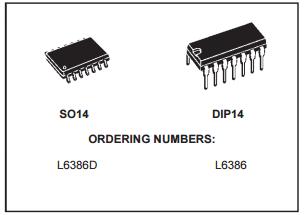

    • HIGH VOLTAGE RAIL UP TO 600V
    • dV/dt IMMUNITY +- 50 V/nsec iN FULL TEMPERATURE RANGE
    • DRIVER CURRENT CAPABILITY: 400 mA SOURCE, 650 mA SINK
    • SWITCHING TIMES 50/30 nsec RISE/FALL WITH 1nF LOAD
    • CMOS/TTL SCHMITT TRIGGER INPUTS WITH HYSTERESIS AND PULL DOWN
    • UNDER VOLTAGE LOCK OUT ON LOWER AND UPPER DRIVING SECTION
    • INTEGRATED BOOTSTRAP DIODE
    • OUTPUTS IN PHASE WITH INPUTS

    DESCRIPTION

    The L6386 is an high-voltage device, manufactured with the BCD ”OFF-LINE” technology. It has a Driver structure that enables to drive independent referenced Channel Power MOS or IGBT. The Upper (Floating) Section is enabled to work with voltage Rail up to 600V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.


    ABSOLUTE MAXIMUM RATINGS

    SymbolParameterValueUnit
    VoutOutput Voltage-3 to Vboot - 18V
    VccSupply Voltage- 0.3 to +18V
    VbootFloating Supply Voltage-1 to 618V
    VhvgUpper Gate Output Voltage- 1 to VbootV
    VlvgLower Gate Output Voltage-0.3 to Vcc +0.3V
    ViLogic Input Voltage-0.3 to Vcc +0.3V
    VdiagOpen Drain Forced Voltage-0.3 to Vcc +0.3V
    VcinComparator Input Voltage-0.3 to Vcc +0.3V
    dVout/dtAllowed Output Slew Rate50V/ns
    PtotTotal Power Dissipation (Tj = 85 °C)750mW
    TjJunction Temperature150°C
    TsStorage Temperature-50 to 150°C

    Note: ESD immunity for pins 12, 13 and 14 is guaranteed up to 900V (Human Body Model)



    BLOCK DIAGRAM


    PIN CONNECTION
