BUS-CONTROLLED AUDIO MATRIX TEA6422
■ 6 Stereo Inputs
■ 3 Stereo Ouputs
■ Gain Control 0 dB/Mute for each Output
■ Cascadable (2 different addresses)
■ Serial Bus Controlled
■ Very Low Noise
■ Very Low Distorsion
■ Fully ESD Protected
■ Wide Audio Dynamic Range ( 3 VRMS)

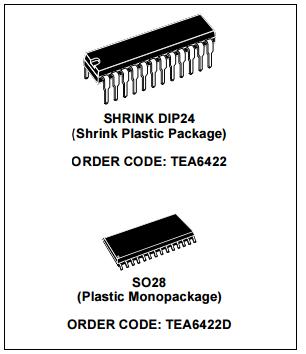

DESCRIPTION
The TEA6422 switches 6 stereo audio inputs on 3 stereo outputs.
All the switching possibilities are changed through the I2C BUS.

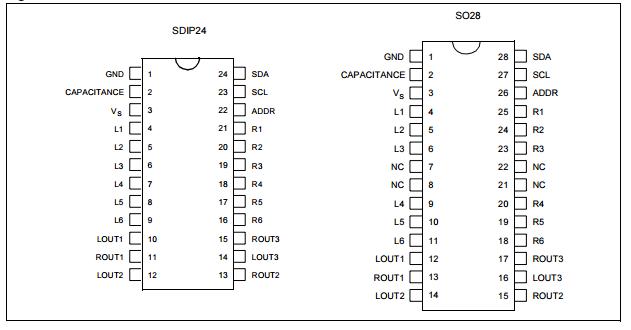

Figure 1. PIN CONNECTIONS
BLOCK DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol | Parameter | Value | Unit |
VCC | Supply Voltage | 12 | V |
Toper | Operating Temperature | 0, + 70 | ℃ |
Tstg | Storage Temperature | - 20, + 150 | ℃ |
THERMAL DATA
Symbol | Parameter | Value | Unit |
Rth(j-a) | Junction - ambient Thermal Resistance SDIP24 SO28 | 75 75 | ℃/W ℃/W |
![]() |
