75ALS176B

DIFFERENTIAL BUS TRANSCEIVERS latest electronic devices

Meet or Exceed the Requirements of TIA/EIA-422-B, TIA/EIA-485-A, and ITU Recommendations V.11 and X.27

Operate at Data Rates up to 35 MBaud

Four Skew Limits Available:

SN65ALS176 . . . 15 ns

SN75ALS176 . . . 10 ns

SN75ALS176A . . . 7.5 ns

SN75ALS176B . . . 5 ns

description

The SN65ALS176 and SN75ALS176 series differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines. They are designed for balanced transmission lines and meet TIA/EIA-422-B, TIA/EIA-485-A, and ITU Recommendations V.11 and X.27.

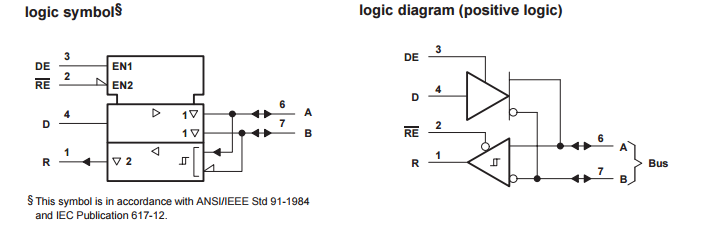

The SN65ALS176 and SN75ALS176 series combine a 3-state, differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form a differential input/output (I/O) bus port that is designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.

The SN65ALS176 is characterized for operation from –40°C to 85°C, and the SN75ALS176 series is characterized for operation from 0°C to 70°C.
