    74HC04N Electronic IC Chips integrated components Hex inverter


    74HC04; 74HCT04

    Hex inverter


    FEATURES

    • Complies with JEDEC standard no. 8-1A

    • ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V.

    • Specified from −40 to +85 °C and −40 to +125 °C.


    DESCRIPTION

    The 74HC/HCT04 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT04 provide six inverting buffers.


    QUICK REFERENCE DATA

    GND = 0 V; Tamb = 25 °C; tr = tf ≤ 6.0 ns.

    SYMBOLPARAMETERCONDITIONSTYPICALUNIT
    HC04HCT04
    tPHL/tPLHpropagation delay nA to nYCL = 15 pF; VCC = 5 V78ns
    CIinput capacitance3.53.5pF
    CPDpower dissipation capacitance per gatenotes 1 and 22124pF

    Notes

    1. CPD is used to determine the dynamic power dissipation (PD in µW).

    PD = CPD × VCC2 × fi × N + Σ(CL × VCC2 × fo) where:

    fi = input frequency in MHz;

    fo = output frequency in MHz;

    CL = output load capacitance in pF;

    VCC = supply voltage in Volts;

    N = total load switching outputs;

    Σ(CL × VCC2 × fo) = sum of the outputs.

    2. For 74HC04: the condition is VI = GND to VCC.

    For 74HCT04: the condition is VI = GND to VCC − 1.5 V.


    Fig.1 Pin configuration DIP14, SO14 and (T)SSOP14.

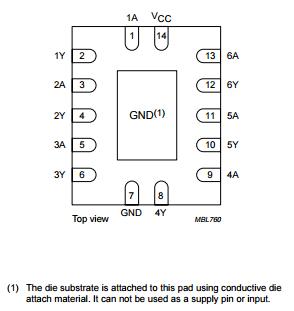

    Fig.2 Pin configuration DHVQFN14. Fig.3 Logic symbol.


    Fig.4 IEC logic symbol. Fig.5 Logic diagram (one inverter).
